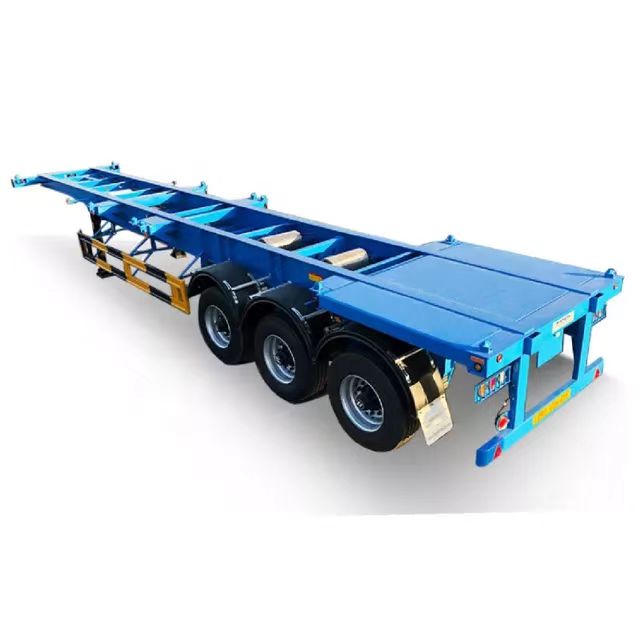

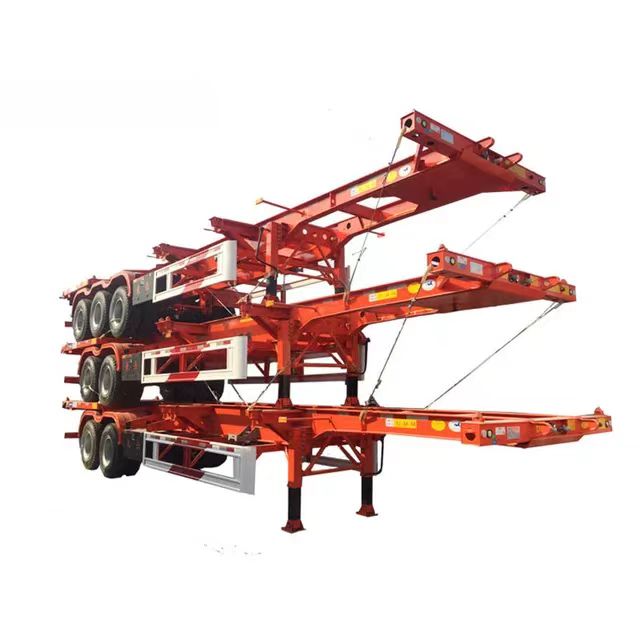

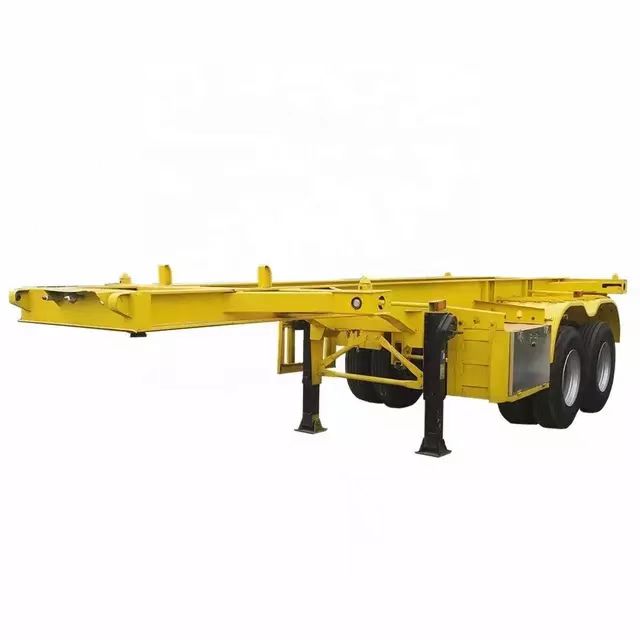

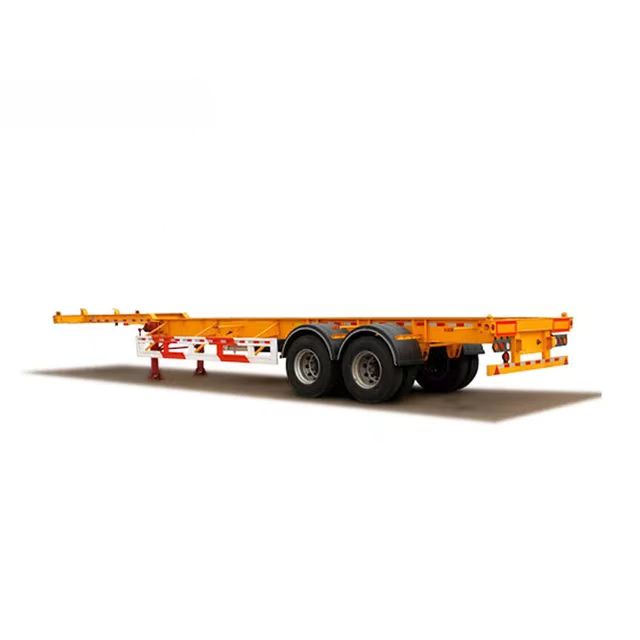

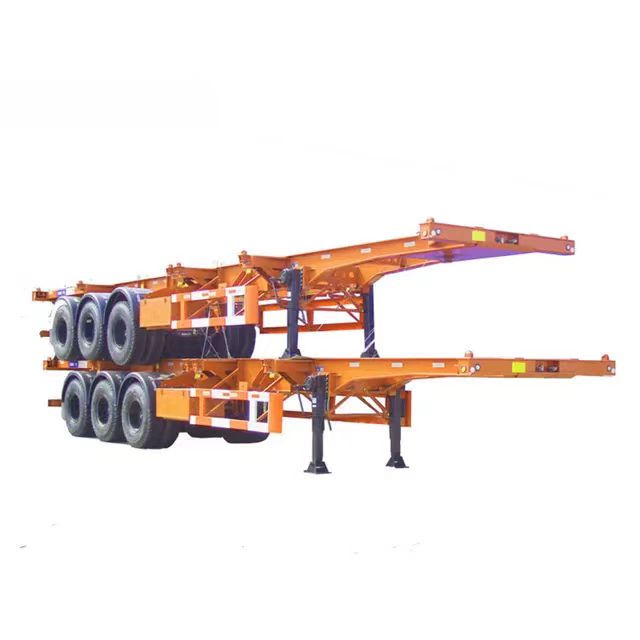

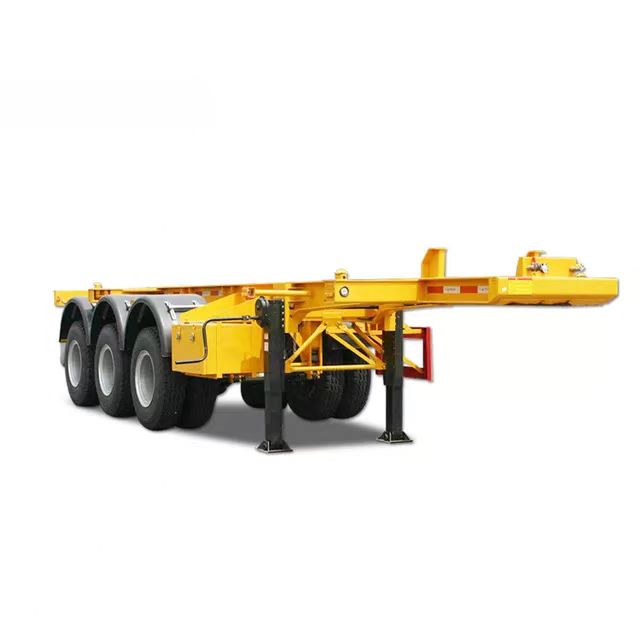

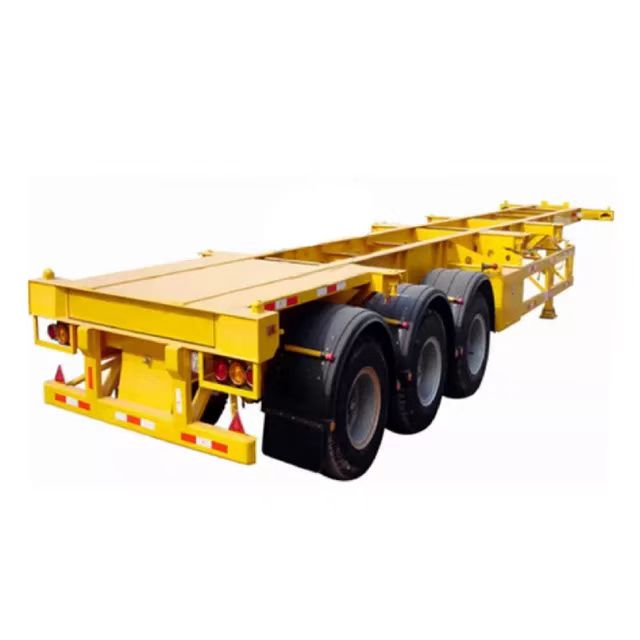

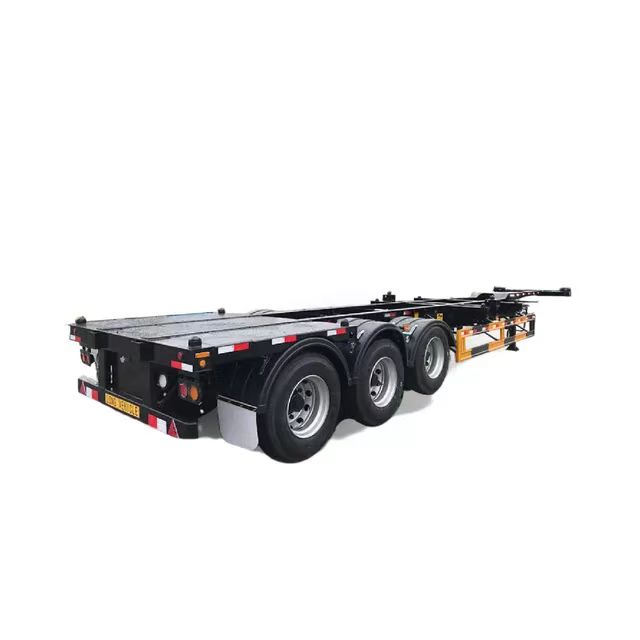

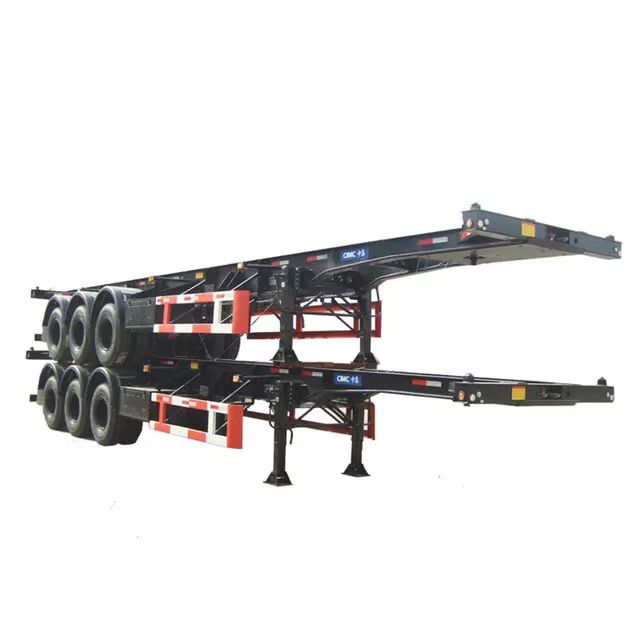

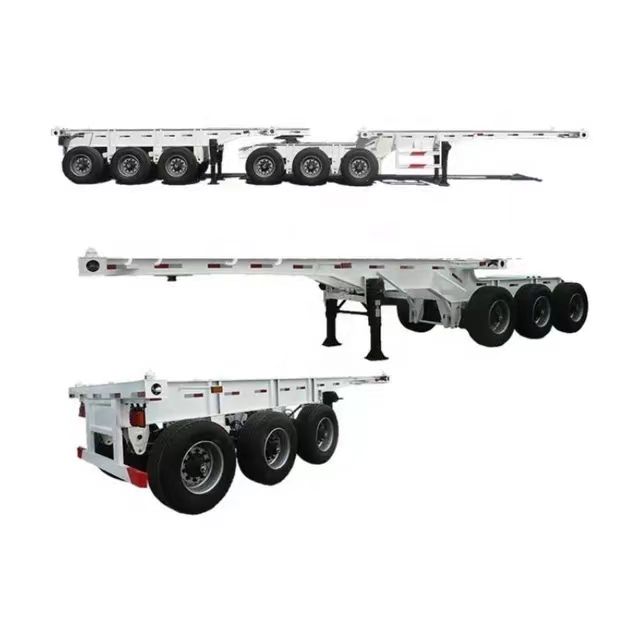

Skeleton transport semi-trailer
- Home
-
U-type rear dump semi-trailer
Products Detail
Parameter category | parameter | ||
Vehicle size (length, width, height) | 13 meters * 2.55-3.0 * 1.15-2.2 (or customized according to requirements) | ||
Vehicle weight | 5.8-8.5 tons (varies depending on the vehicle model) | ||
Design load capacity | 40-80 tons (varies depending on the vehicle model) | ||
Rated quality | 22.4-100 tons (varies depending on the vehicle model) | ||
Number of axes | 3-5轴 | ||
wheelbase | 998043200,+1310+1310 (or customized according to requirements) | ||
Tire specifications | Number of tires | 12-20 (customized according to requirements) | |
Tire model | 1200R-22., 235/75R-17.5245/75-19.5295/60-22.5 (customized according to requirements) | ||
braking system | Front and rear drum dual circuit hydraulic brake and pneumatic brake system, independent parking brake | ||
Suspension system type | Mechanics | Front and rear longitudinal steel plate springs, Fuhua | |
Air suspension | Cylinder type pneumatic shock absorber, Fuhua | ||
Material of the main beam | T700 high-strength steel | ||
Main beam and longitudinal beam parameters | Vertical board thickness | 6/8/10/12mm | |
height | 480-500mm | ||
Thickness of upper wing plate | 10/12/14/16/18/20mm | ||
Thickness of lower wing plate | 10/12/14/16/18/20/22mm | ||
Leg type | 28T, JOST, single action or linkage | ||
ABS,EBS system | KORMEE,WABCO | ||
Tractor fuel type | diesel oil | ||
Traction pin model | 90#,50#(JOST) | ||
spray | Rust prevention+polyurethane paint, powder coating electrophoresis, customized according to needs | ||
Turn lock(THT) | 4-12 pieces |
