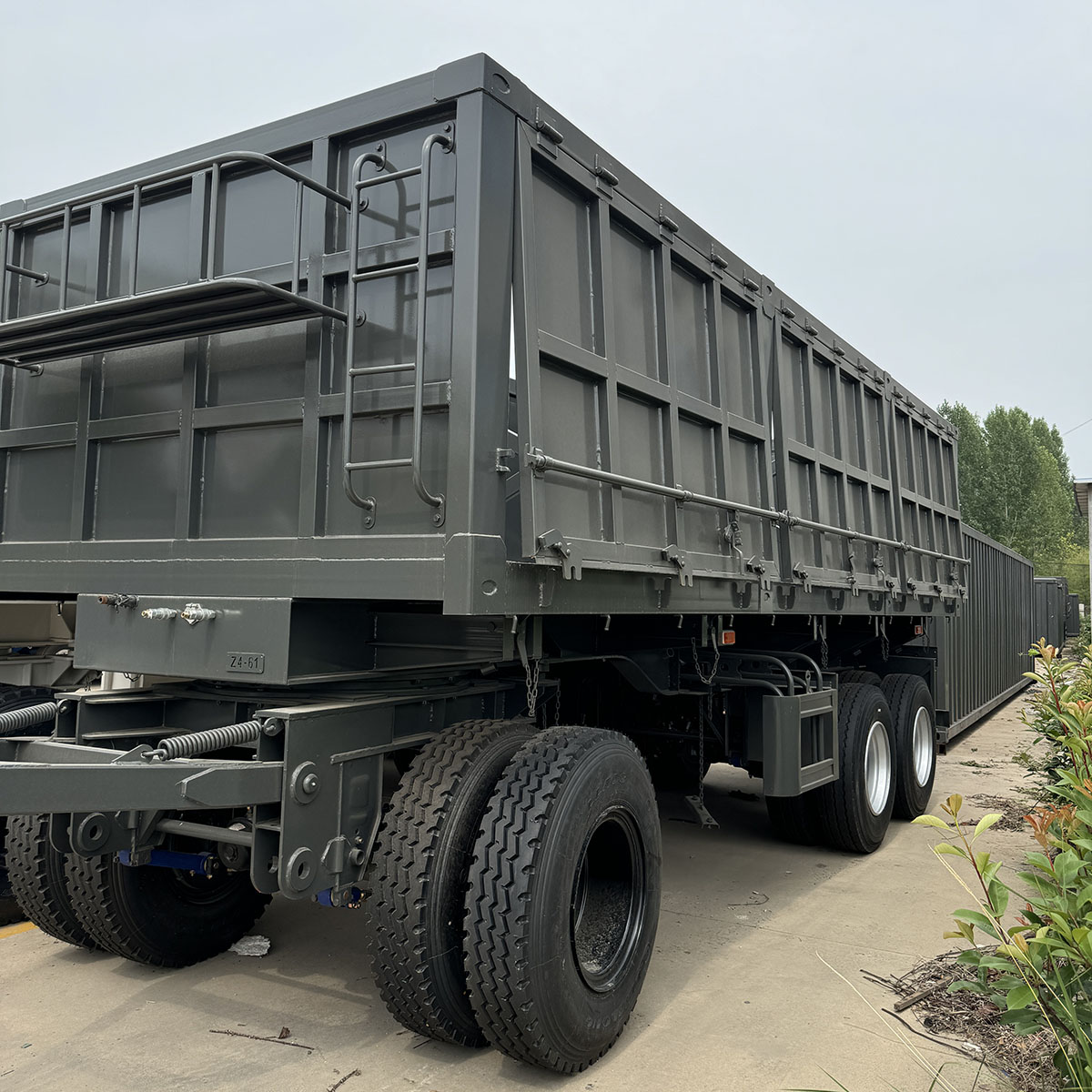

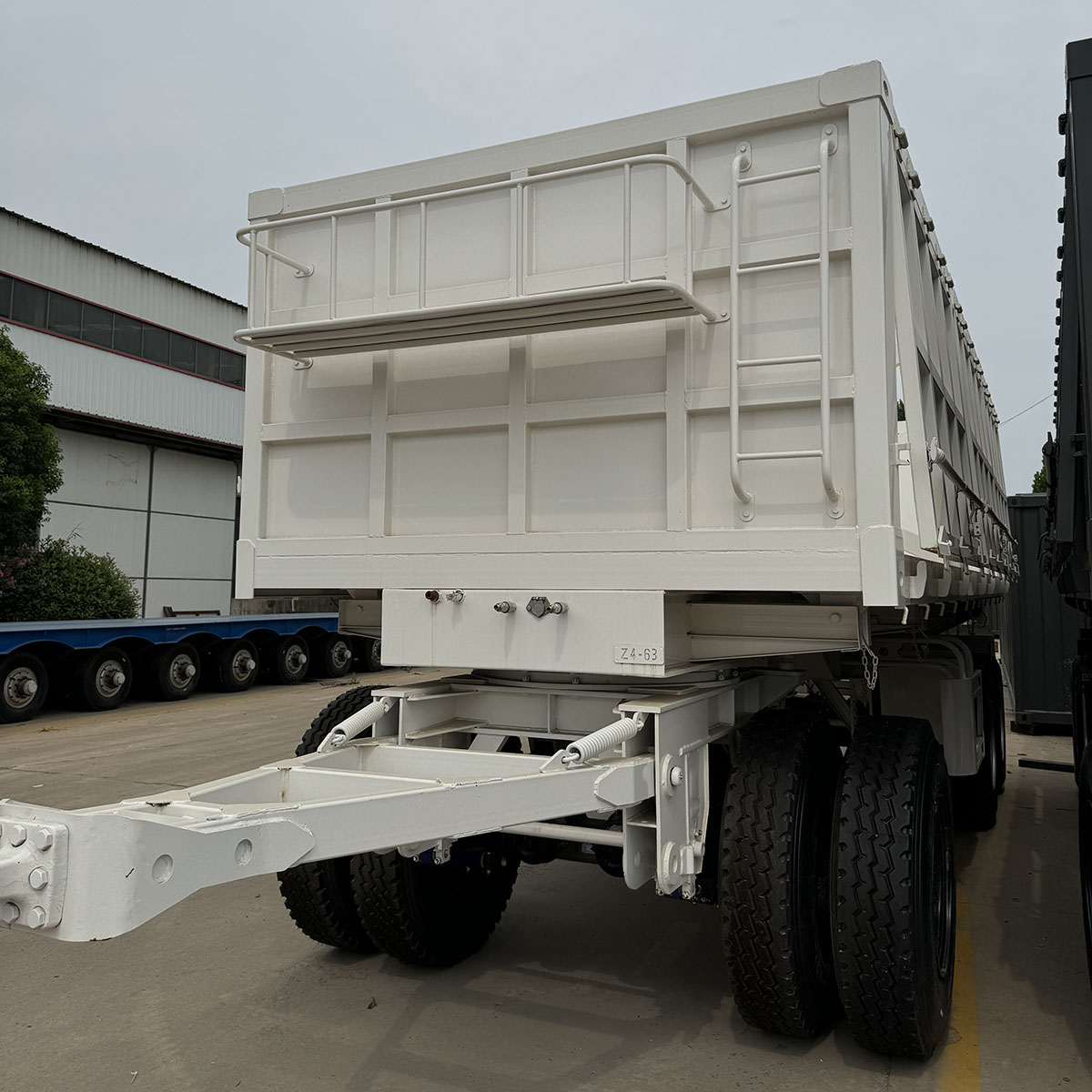

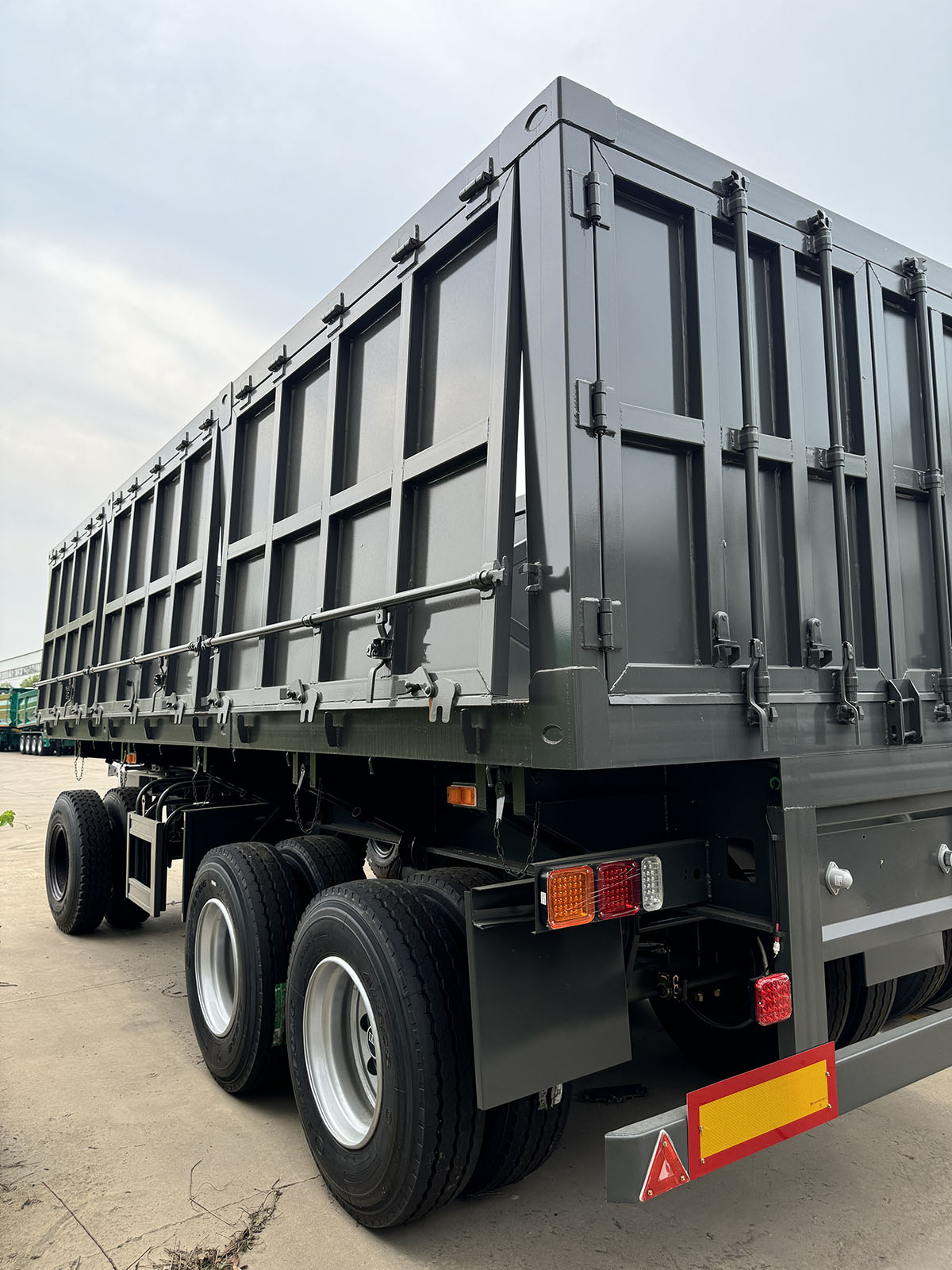

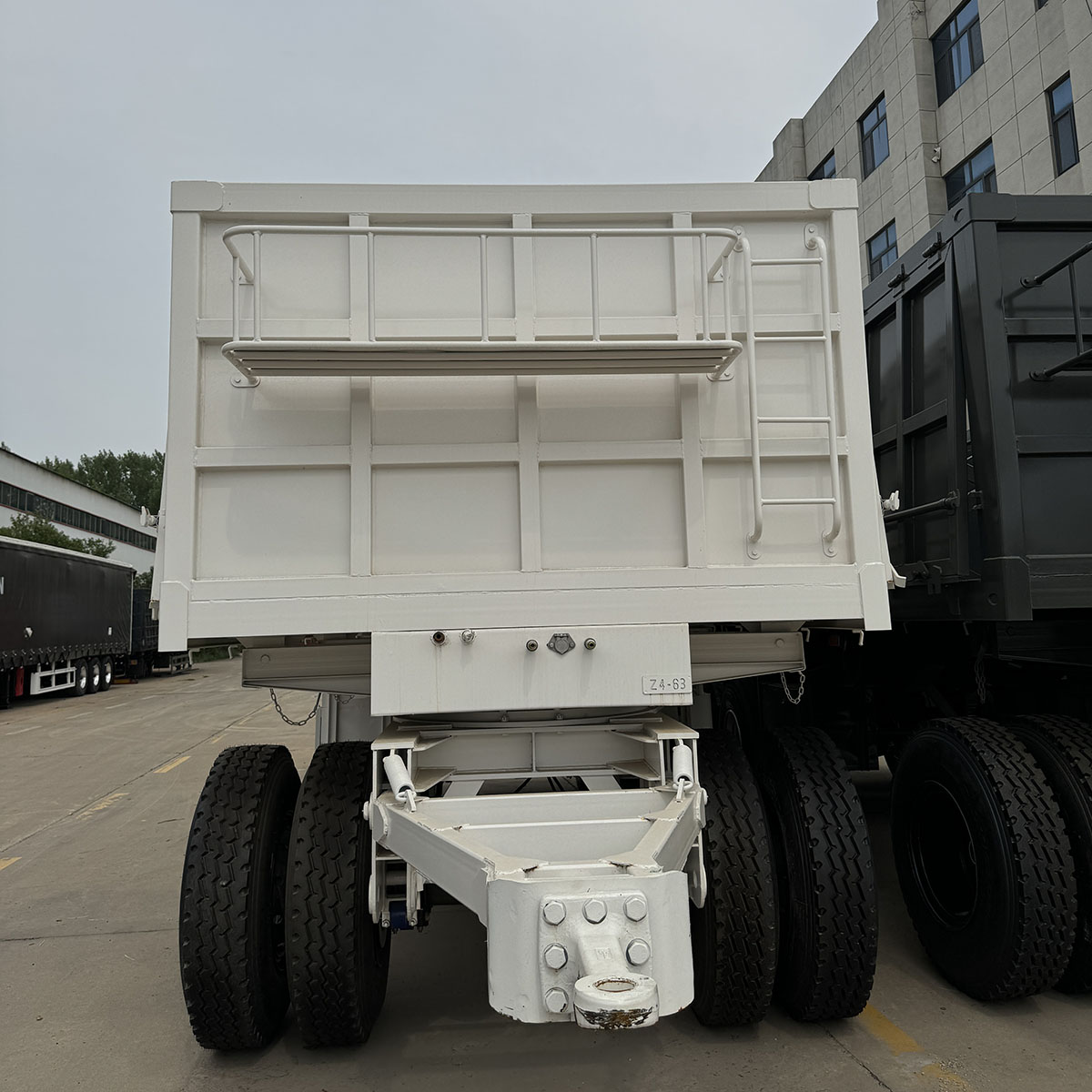

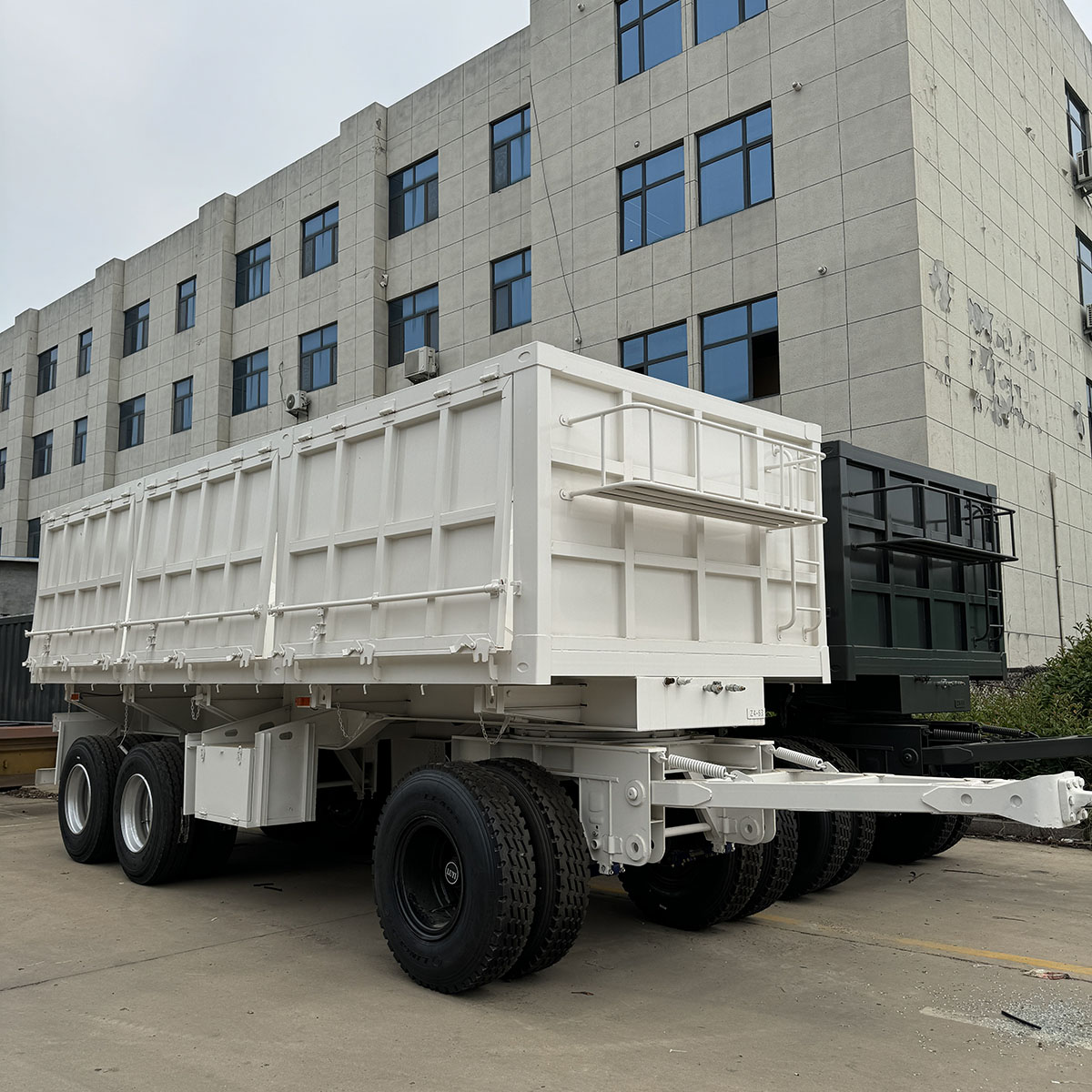

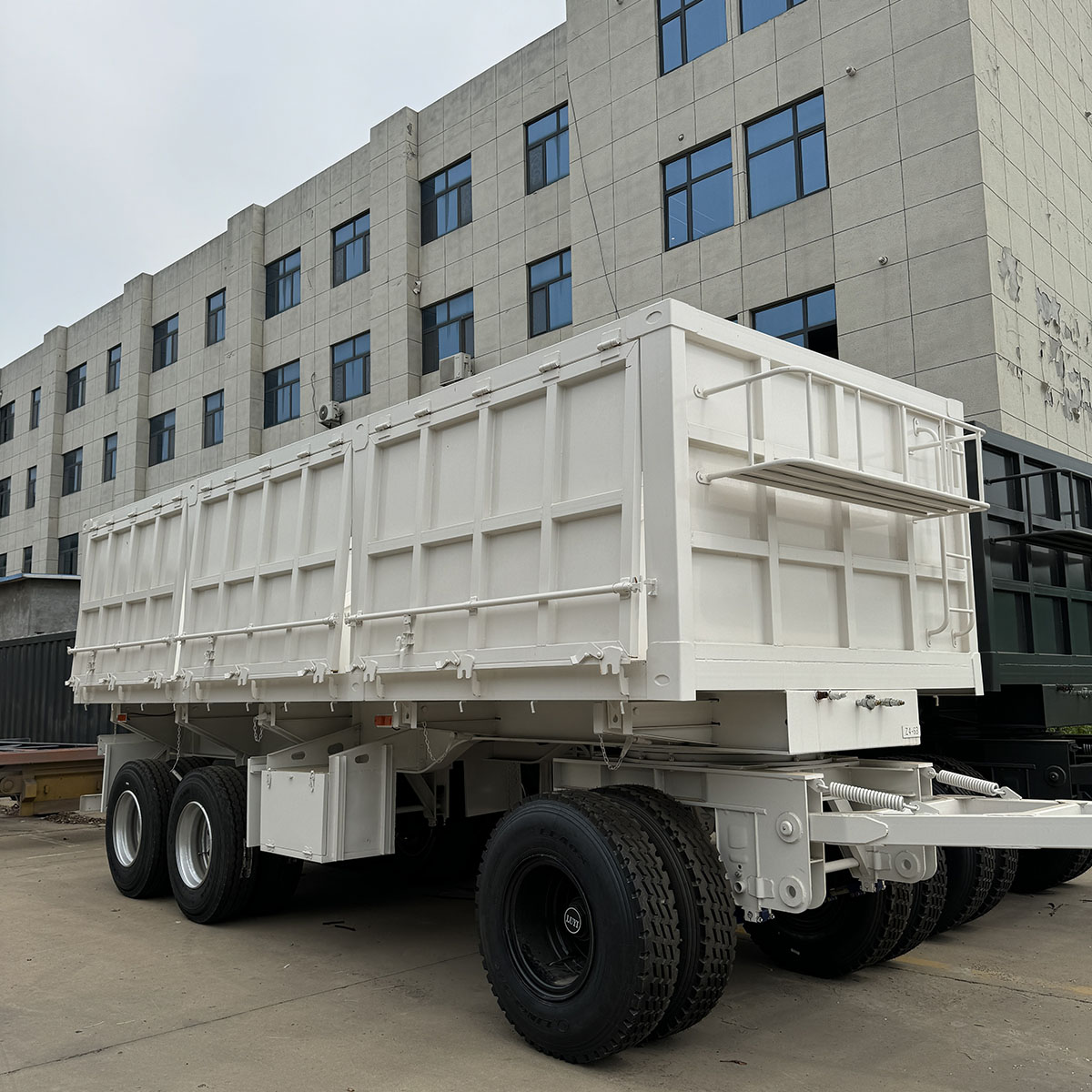

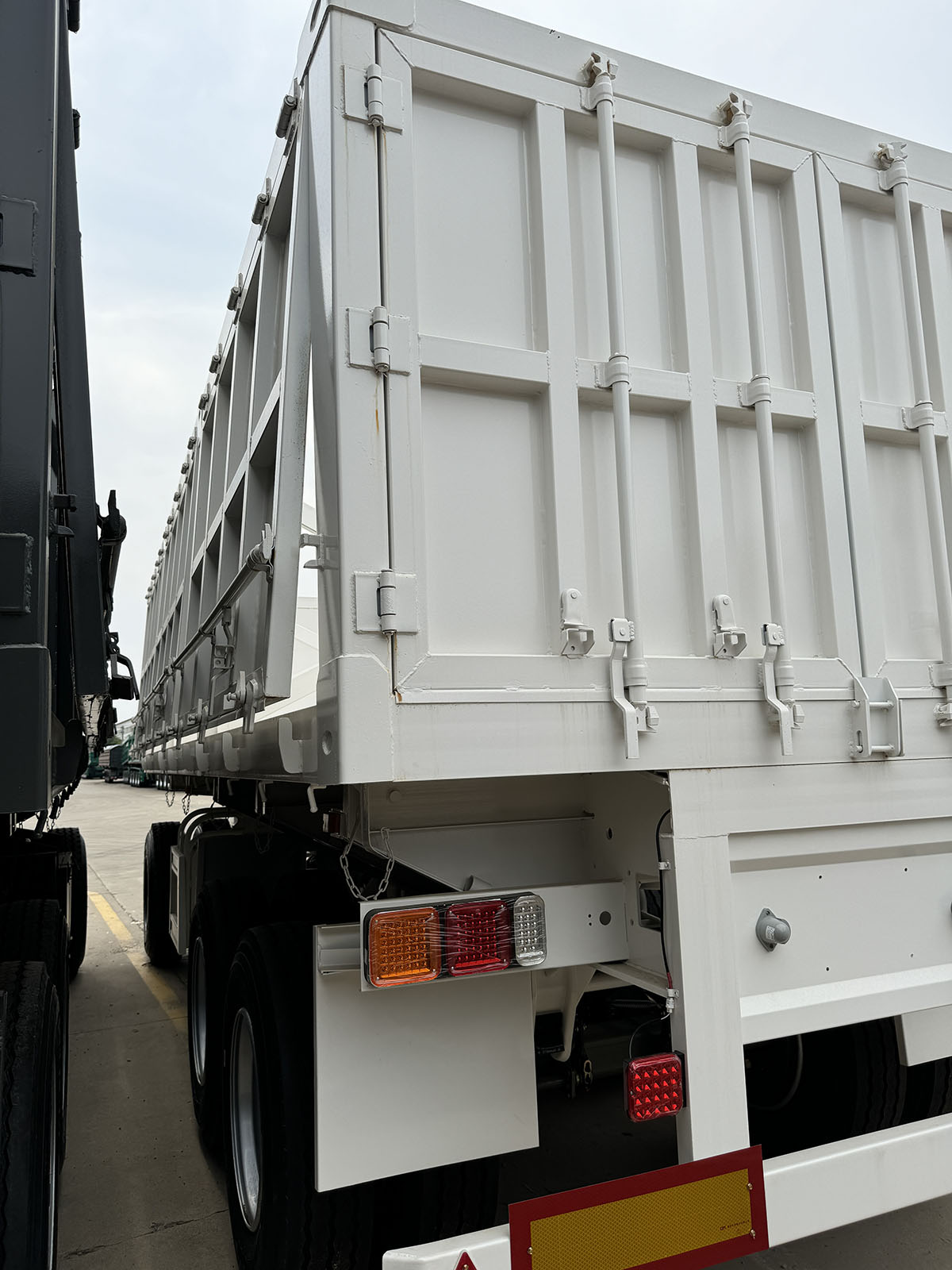

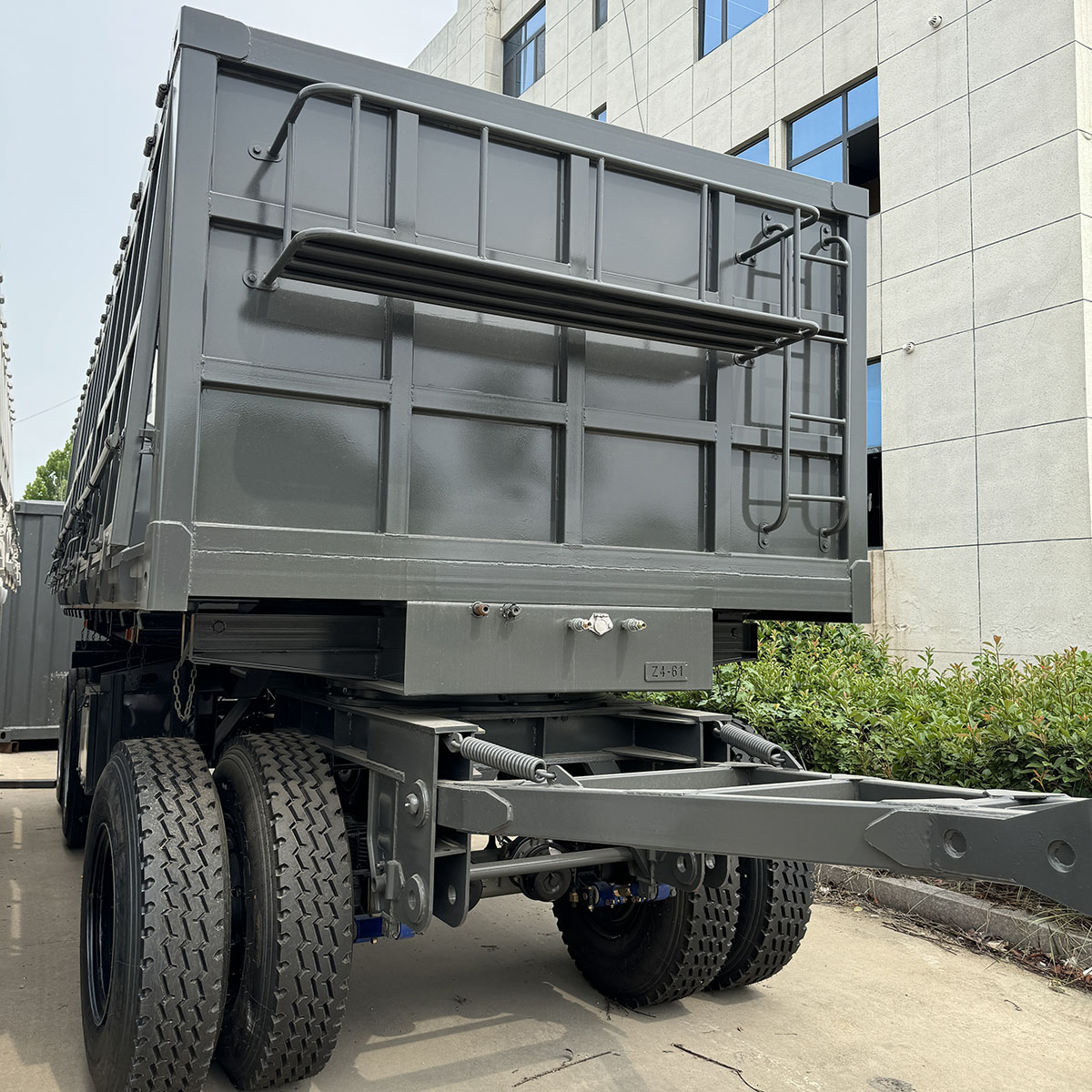

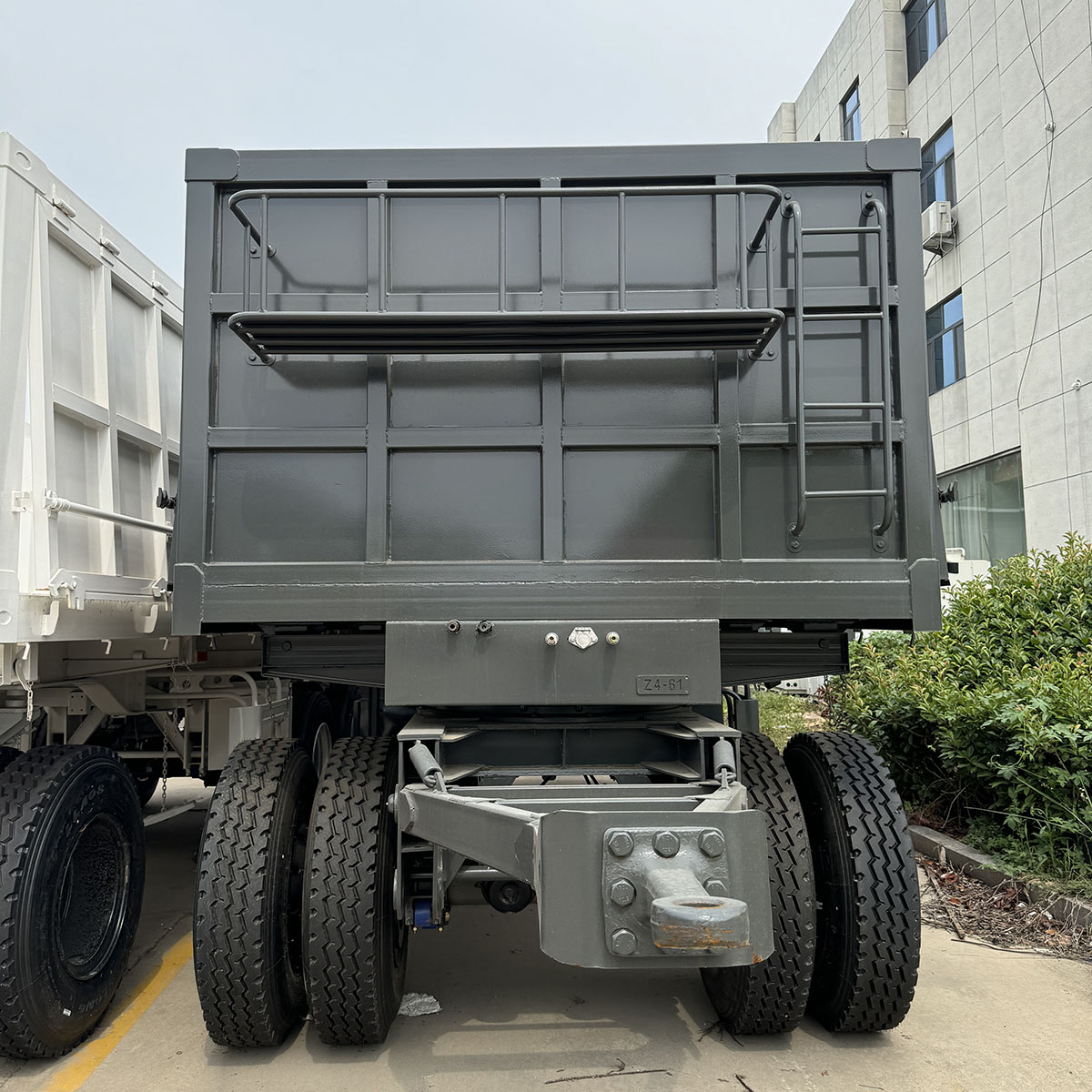

U-type rear dump semi-trailer
Products Detail
| Parameter type | parameter | |
| Vehicle dimensions
(length, width, height) |
10-15 m * 2.5/2.55 m * 1.8-4.2 m (or customized according to requirements) | |
| Container parameters | Container dimensions(length,width, height) | 9-11 m * 2.5/2.55 m* 1.8-4 m (or customized according to needs) |
| Container material | T700, T750 high-strength steel plate | |
| Cabin structure | Hanging open+split open | |
| Vehicle weight | 8T-16T (Depending on the vehicle model) | |
| Design load capacity | 40T-120T (Depending on the vehicle model) | |
| Rated quality | 30T-100T (Depending on the vehicle model) | |
| Number of axes | 3-4-5 axes | |
| wheelbase | 4200,6480,6800,+1310+1310 (or customized according to requirements) | |
| Tire specifications | Number of tires | 12-20 (Customized according to requirements) |
| Tire model | 11.00R20,12.00R22.5,etc. (customized according to requirements) | |
| Power take-off system | Power take-off (according to the ratio of the tractor truck gearbox) | |
| braking system | Front and rear drum dual circuit hydraulic brake and pneumatic brake system, independent parking brake | |
| Lifting system | Lifting method | Haiwo hydraulic cylinder lifting |
| Number of lifting cylinders | 6-7 lifts+1-2 shifts (optional) | |
| Suspension system type | Mechanics | Front and rear longitudinal steel plate springs, Fuhua |
| Air suspension | Cylinder type pneumatic shock absorber, Fuhua (lightweight optional) | |
| Material of the main beam | T700，Q355E，690D，BS980 etc.High strength steel | |
| Main beam and longitudinal beam parameters | Vertical board
thickness |
4/6/8/10mm |
| height | 400-500mm | |
| Thickness of upper wing plate | 6/8/10/12/14mm | |
| Thickness of lower wing plate | 6/8/10/12/14/16mm | |
| Leg type | 28T, JOST, single action or linkage | |
| ABS,EBS,system | KORMEE，WABCO | |
| spray | Rust prevention+polyurethane paint, powder coating electrophoresis, (customized according to requirements) | |
