| Parameter type | Parameter | |||

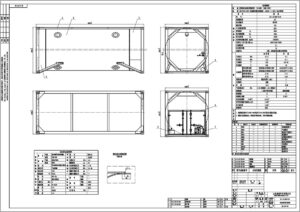

| Product drawings |  |
|||
|
Tank container |
model | CG-1.6-2230-19.8 | ||
| Container type | 1CC | |||
| United Nations Number | UN1978 | |||
| Guidelines for Tank Cabinets | T75 | |||
| Size and box type code | 22T5 | |||
| Box quality kg | 9300 | |||
| Maximum loading capacity kg | 7592 | |||
| Maximum total mass kg | 34000 | |||
| Allow stacking quality/layers kg／layer | 192000/6 | |||
| Dimensions (length，width ， height)mm | 6058X2438X2591 | |||
| Main hazard category | 2.1 | |||
| Design service life | 10 | |||
| type of shipping | Highway, waterway, or intermodal transportation of these modes of transportation | |||
|
Tank body |
Parameter type | Content container | Shell | |
| working pressure/MPa | ≤1.6 | -0.1 | ||
| Design pressure/MPa | 1.6 | -0.1 | ||
| working temperature /℃ | -162 | -19~50 | ||
| Design temperature/℃ | -196 | 50 | ||
|
Main material |
Head material/standard | S30408(Rp1.0)/GB24511-2009 | Q345R/GB/T713-2014 | |
| Cylinder material/standard | S30408(Rp1.0)/GB24511-2009 | Q345R/GB/T713-2014 | ||
| Head design
thicknessmm |
11.62 | 7.14 | ||
| Design thickness of cylinder body mm | 11.67 | 3.05 | ||
| Filling Medium | liquified natural gas（LNG） | / | ||
| Medium characteristics | explosive | / | ||
| volume | 19.8 | 3.58 | ||
| Pressure test pressure MPa | 1.96（Before assembly）1.84（After assembly） | / | ||
| Leakage test | 1.6MPa Air tightness test | Ammonia mass spectrometry leak detection | ||
| Corrosion allowance | 0 | 0 | ||
| Welding joint coefficient | 1 | 0.85/1 | ||
| Vacuum interlayer leakage rate Pa*m³/S | 5×10^(-9) | |||
| Vacuum interlayer leakage rate Pam³／S | 1×10^(-6) | |||
| Sealing vacuum degree | 1×10^(-1) | |||
| Maintain time | 60 days | |||
| other | 1、Containers should undergo various type tests in accordance with GB/T16563-1996 and JB/T4784-2007；
2、After the assembly of the tank body and frame, sandblasting treatment is carried out as a whole, and paint is evenly sprayed； |
|||
