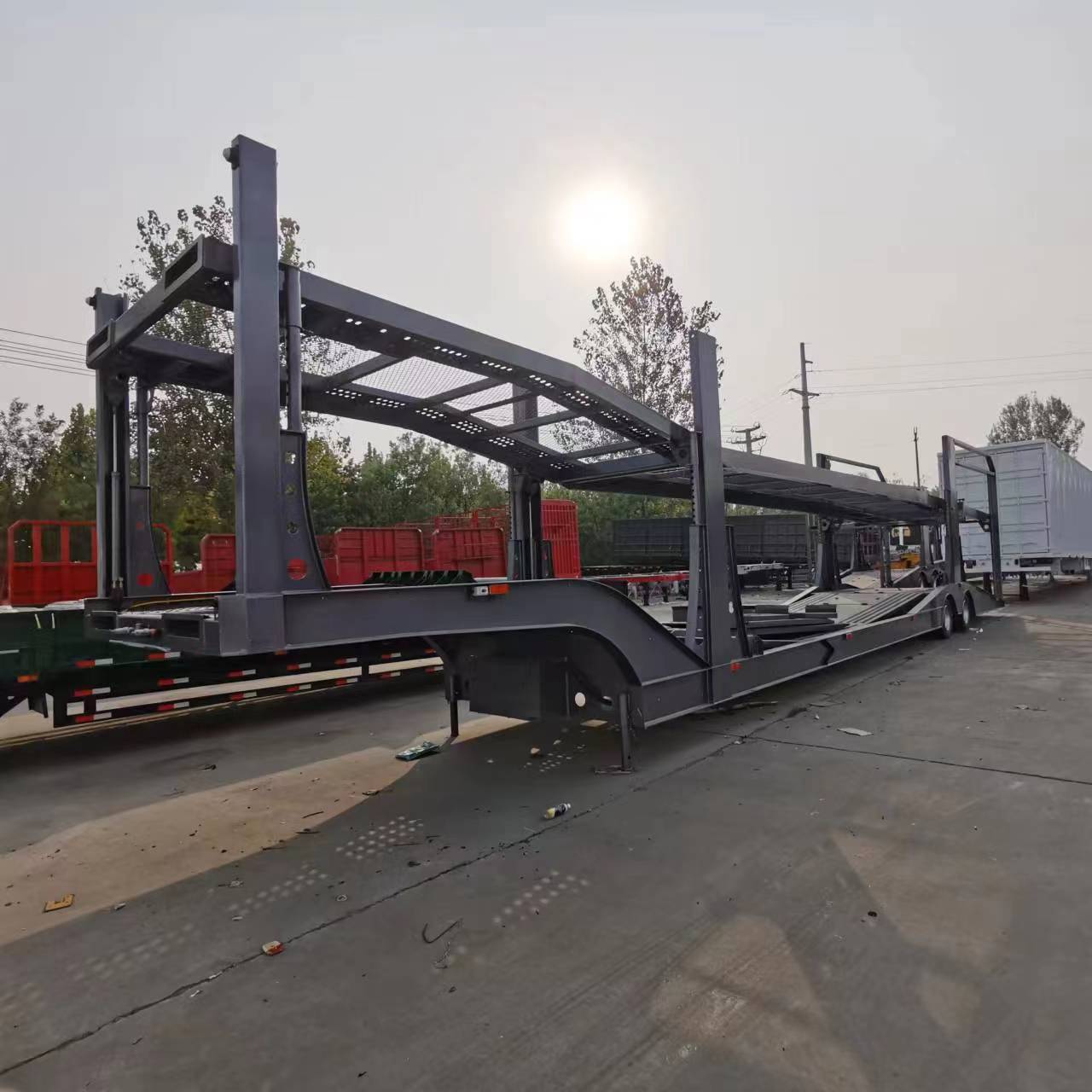

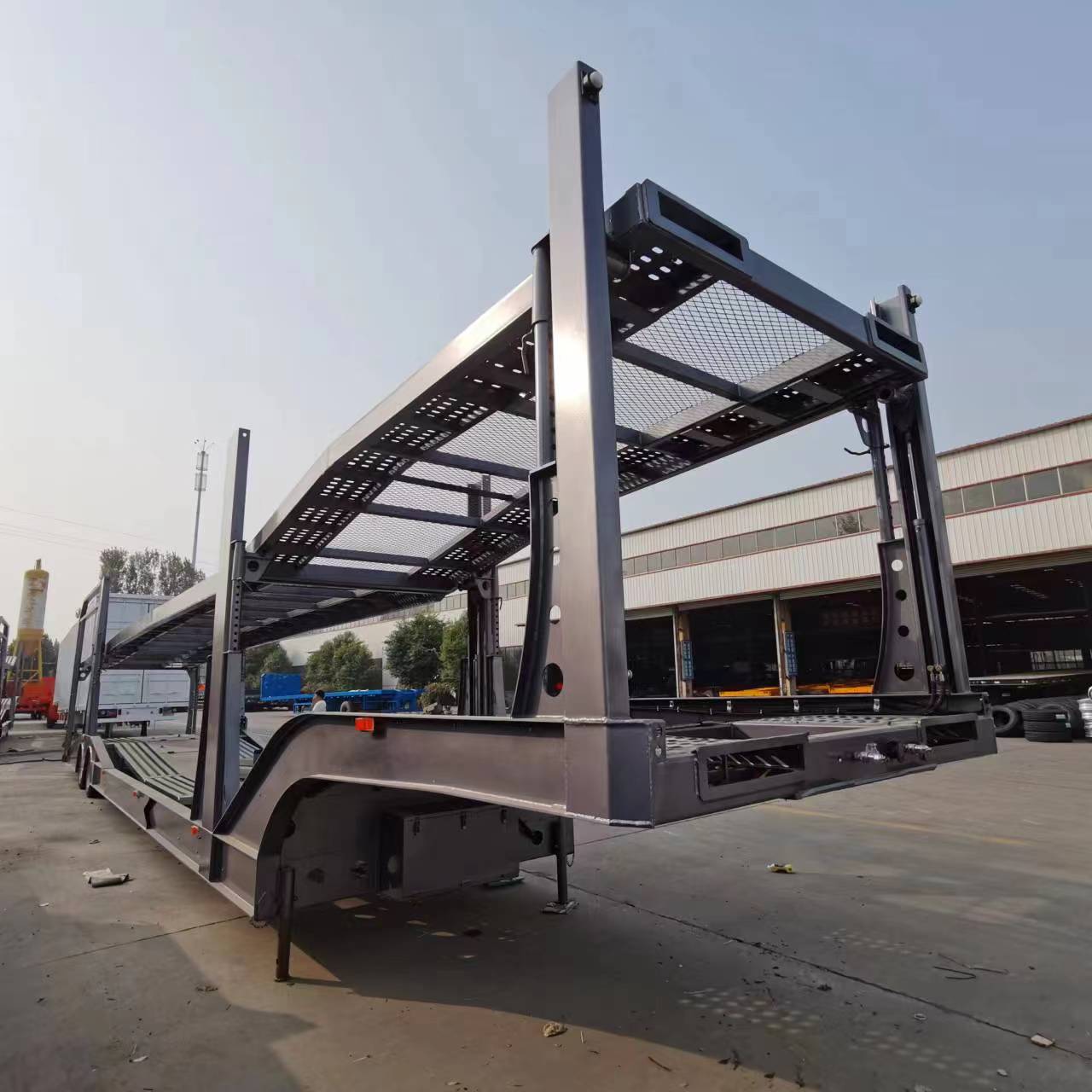

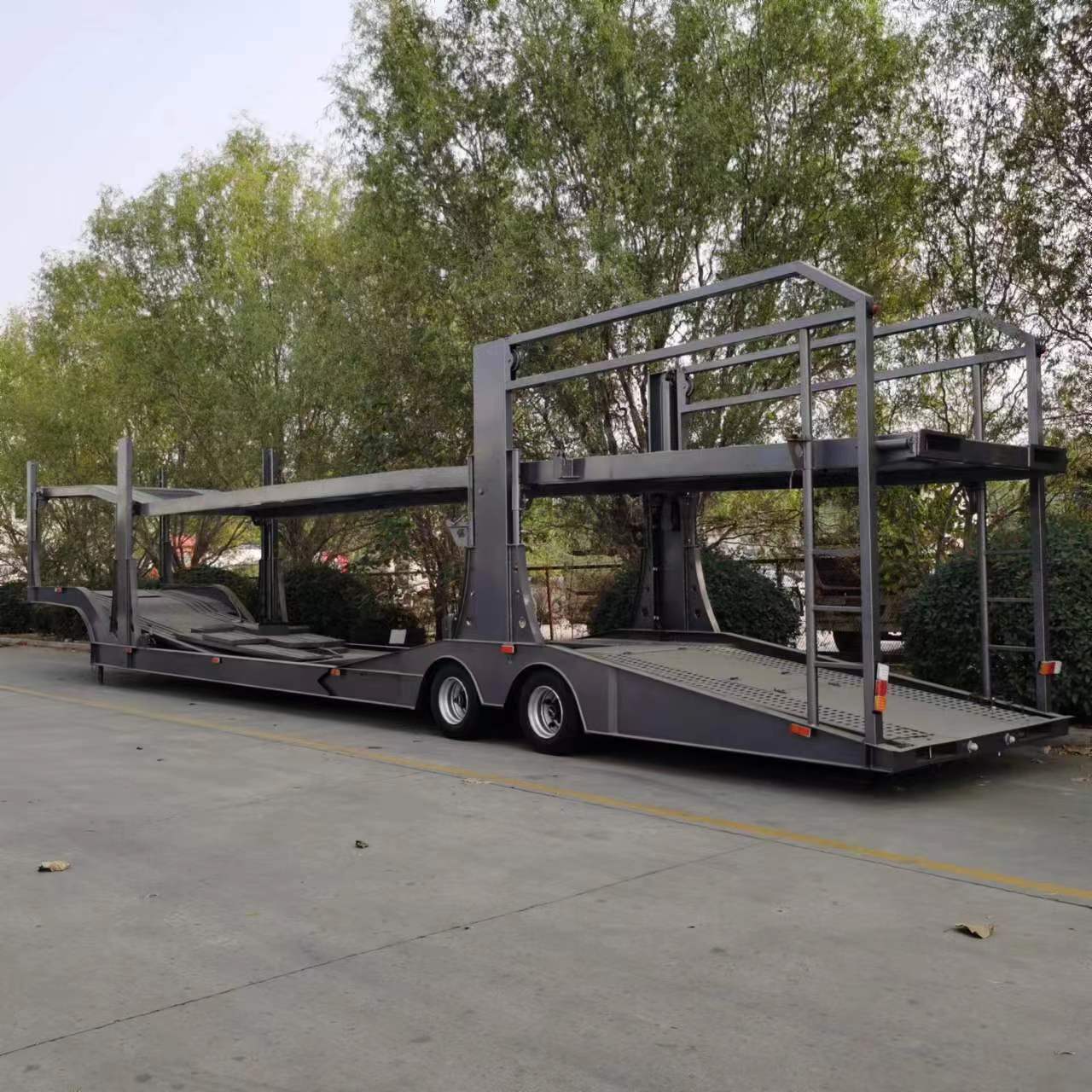

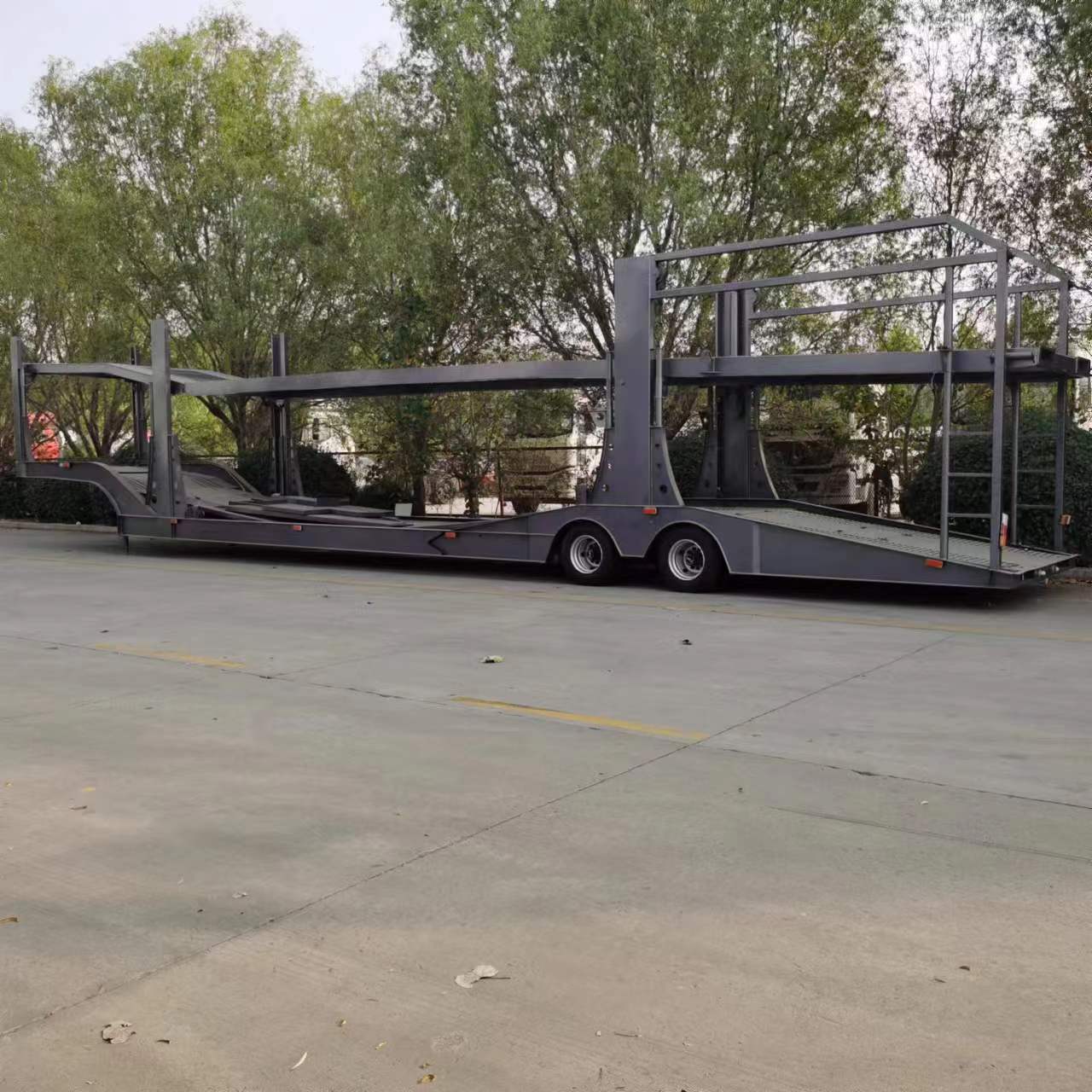

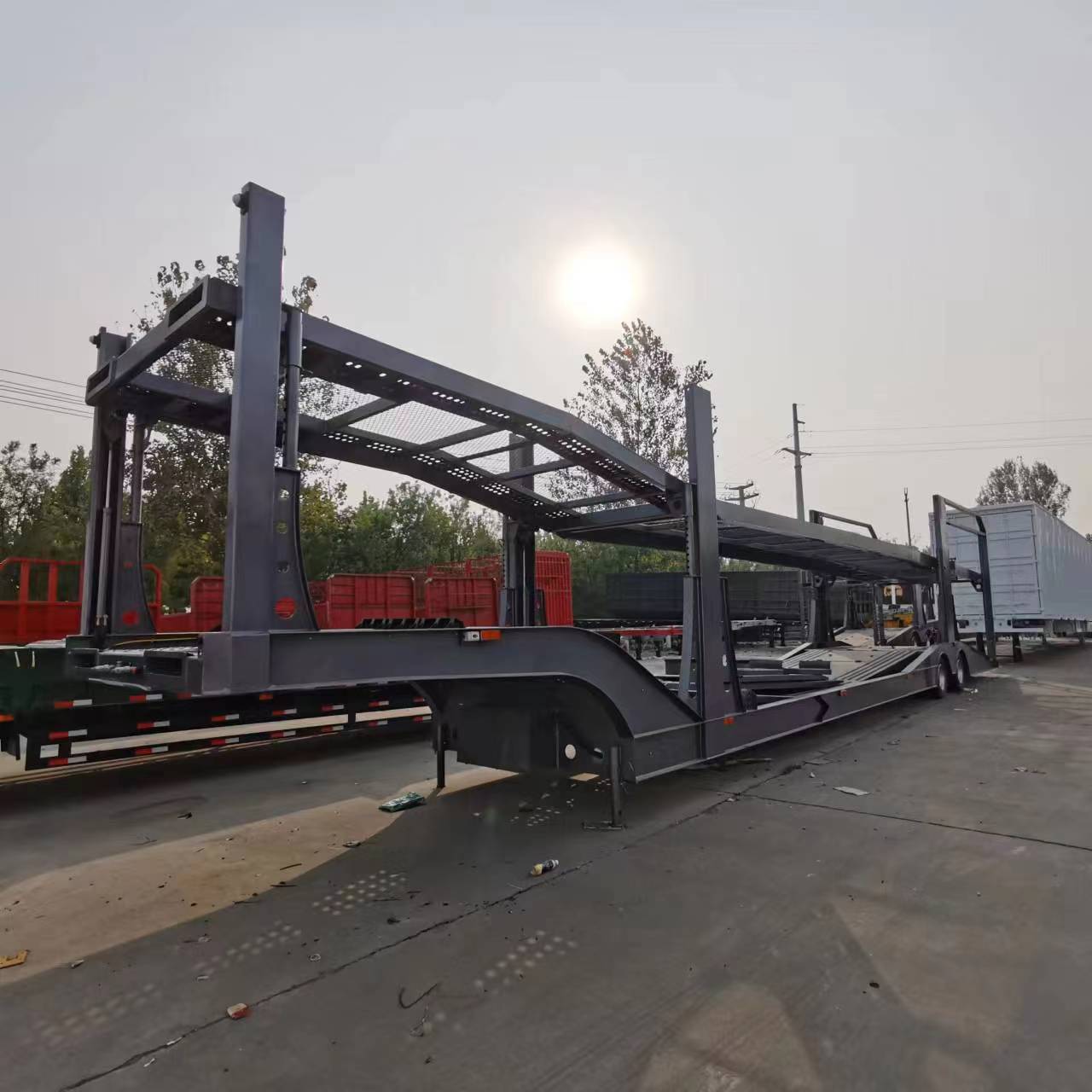

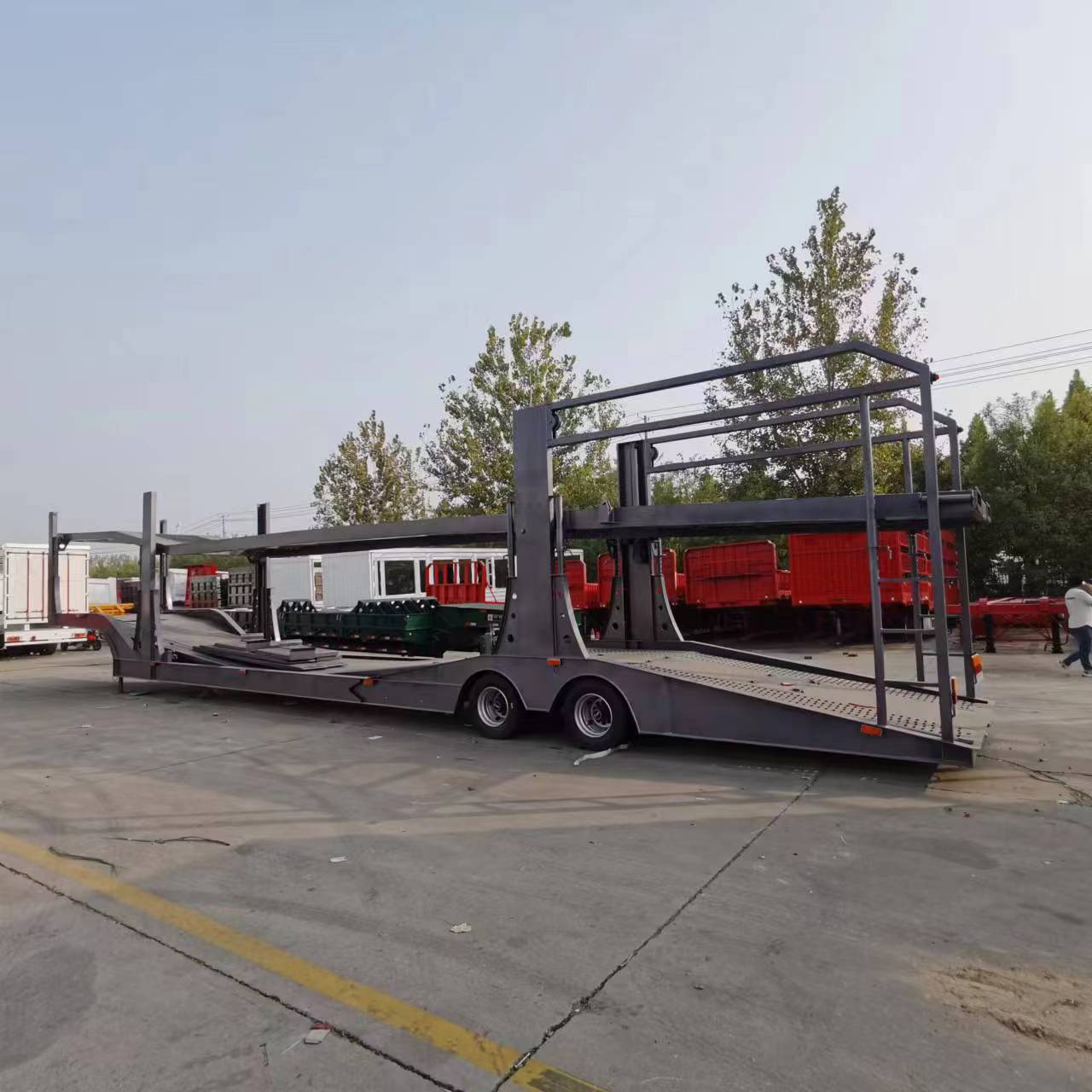

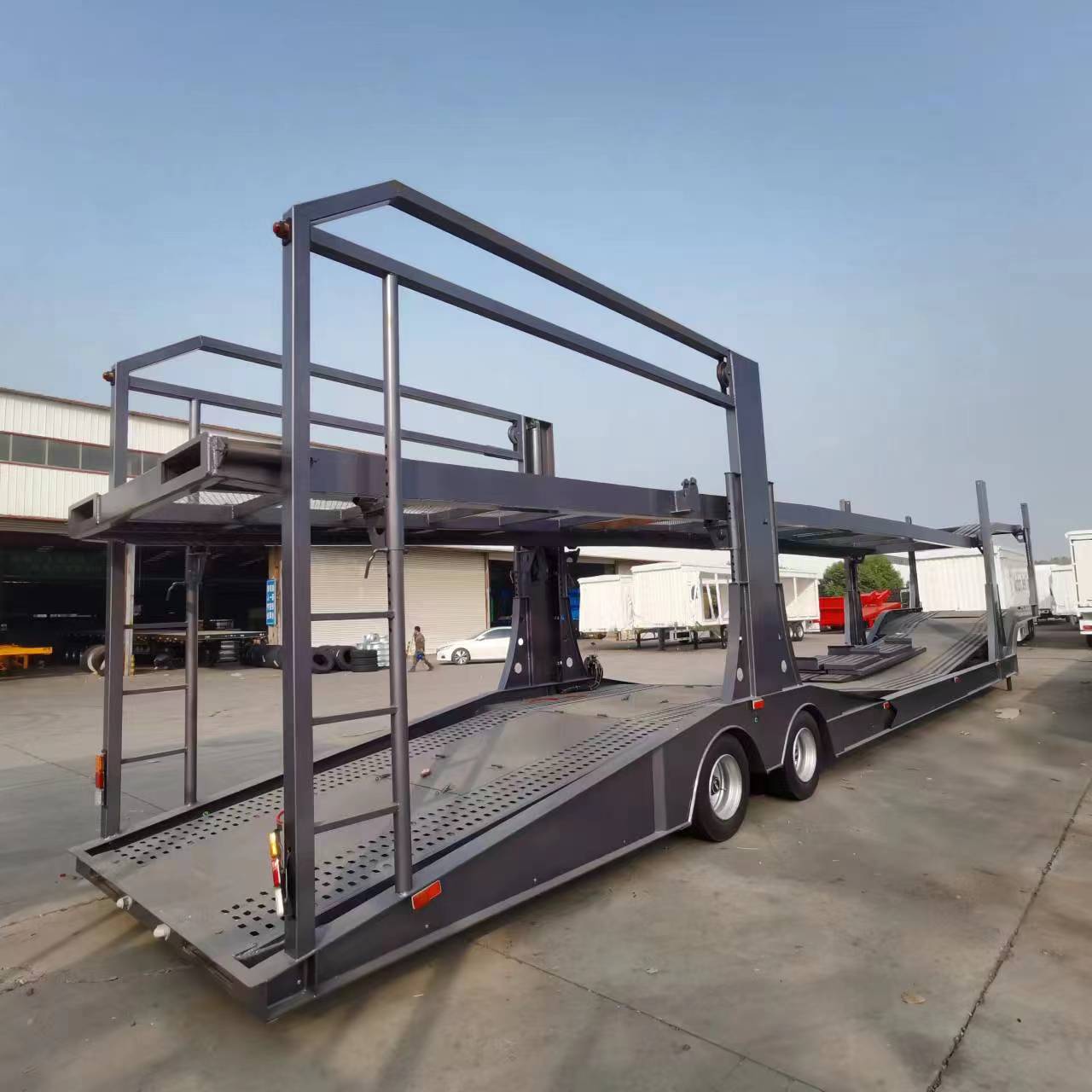

Car carrier
- Home
-
U-type rear dump semi-trailer
Products Detail
| Parameter category | parameter | |
| Vehicle dimensions
(length, width, height) |
13-18 meters * 2.55/3 meters * 0.85-1.2 meters (customizable according to needs) | |
| Vehicle weight | Commonly ranging from 10 tons to 21 tons (depending on the vehicle model and configuration) | |
| Design weight | Commonly ranging from 60 tons to 150 tons (depending on the vehicle model and configuration) | |
| Number of axes | Common 3-4-5-6-7-8 axes ✖ 11.5 tons (customizable according to demand) | |
| wheelbase | 6950,8800,+1310+1310(customizable according to requirements) | |
| Tire specifications | Number of tires | Common 12-32 (configured according to the number of axes) |
| Tire model | 825-16,825-20,205/65R17.5,215/60R16,245/70R17.5，215/65R-17.5，235/70R-17.5(Customized according to requirements) | |
| Suspension system | Mechanics | Front and rear longitudinal steel plate spring suspension, Fuhua |
| Air suspension | Cylinder type pneumatic shock absorber, Fuhua (preferred in Kazakhstan and Russia) | |
| braking system | Front and rear drum dual circuit hydraulic brake and pneumatic brake system, independent parking brake | |
| Material of the main beam | T700, T750, Q355E, 690D. BS980. High strength steel, etc | |
| Main beam and longitudinal beam parameters | Vertical board thickness | 6/8/10/12/14mm (double vertical plate) |
| height | 230-400mm,480-500mm | |
| Thickness of upper wing plate | 10/12/14/16/18/20mm | |
| Thickness of lower wing plate | 10/12/14/16/18/20/22mm | |
| Leg type | 28T,JOST,Single action or linkage | |
| ABS,EBS system | KORMEE，WABCO | |
| Tractor fuel type | diesel oil | |
| Traction pin model | 90#，50#（JOST) | |
| spray | Rust prevention+polyurethane paint, powder coating electrophoresis, customized according to needs | |
| Turn lock（THT） | 4-12 | |
| remarks | According to the customer’s cargo requirements, additional equipment such as pulling, turning, and widening can be designed | |
