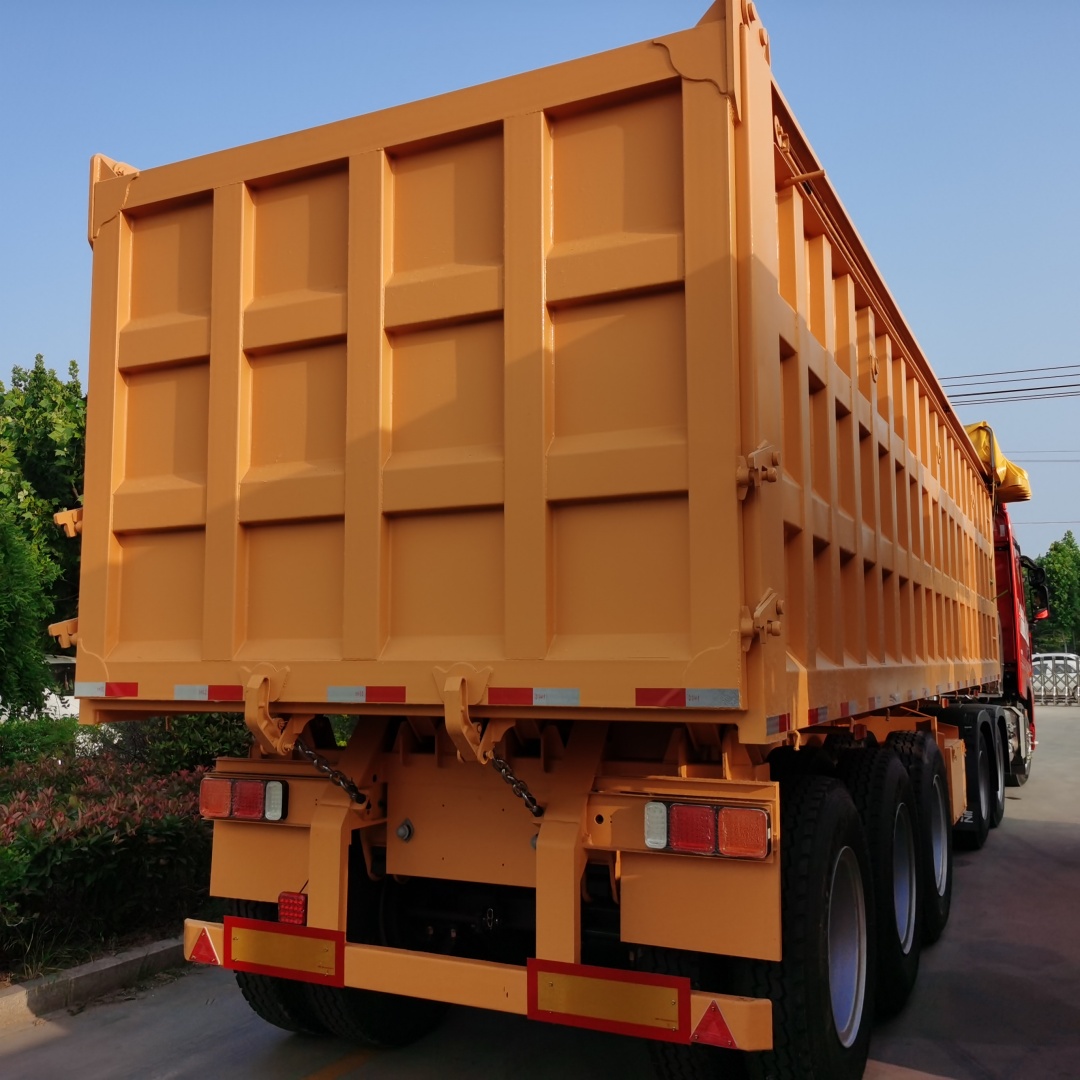

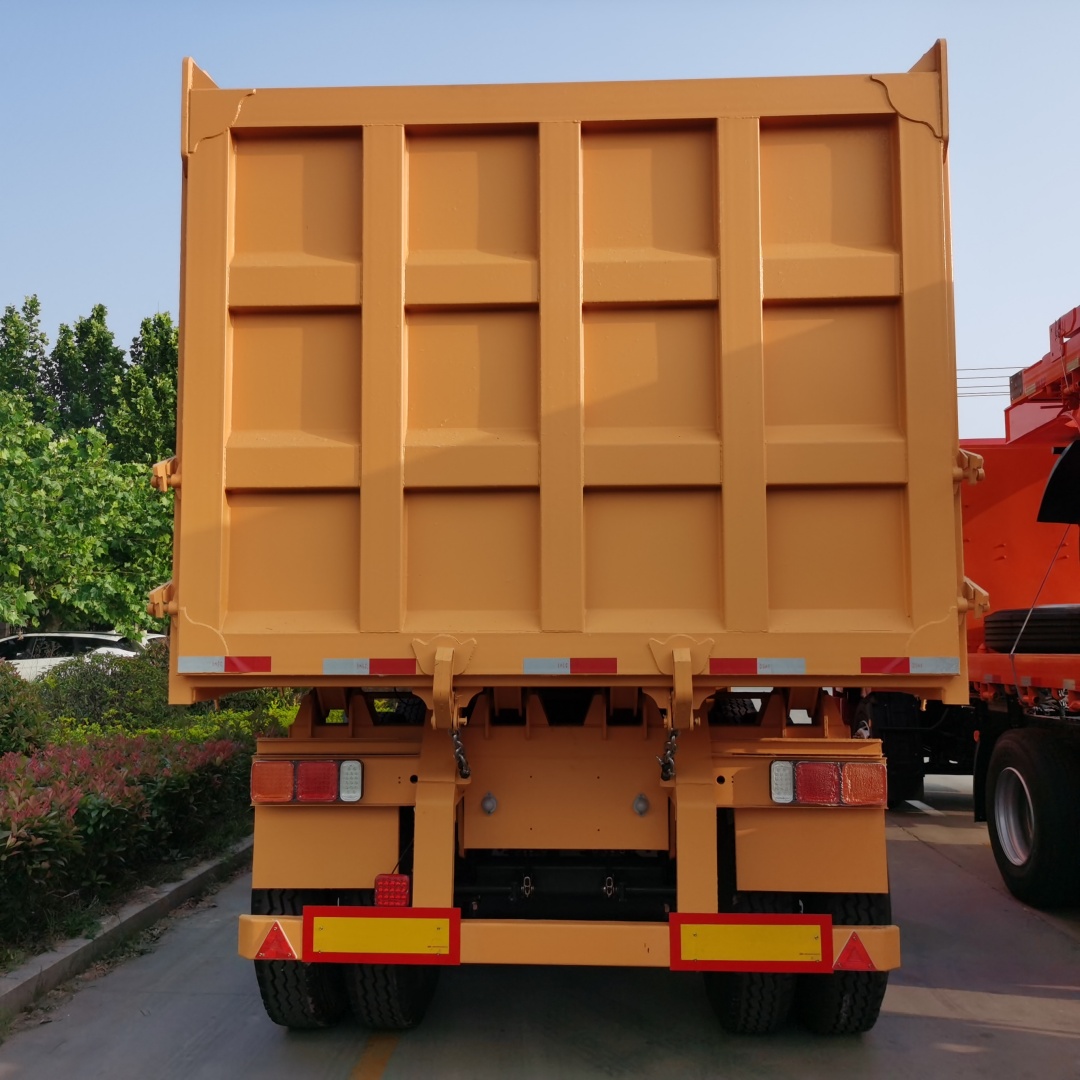

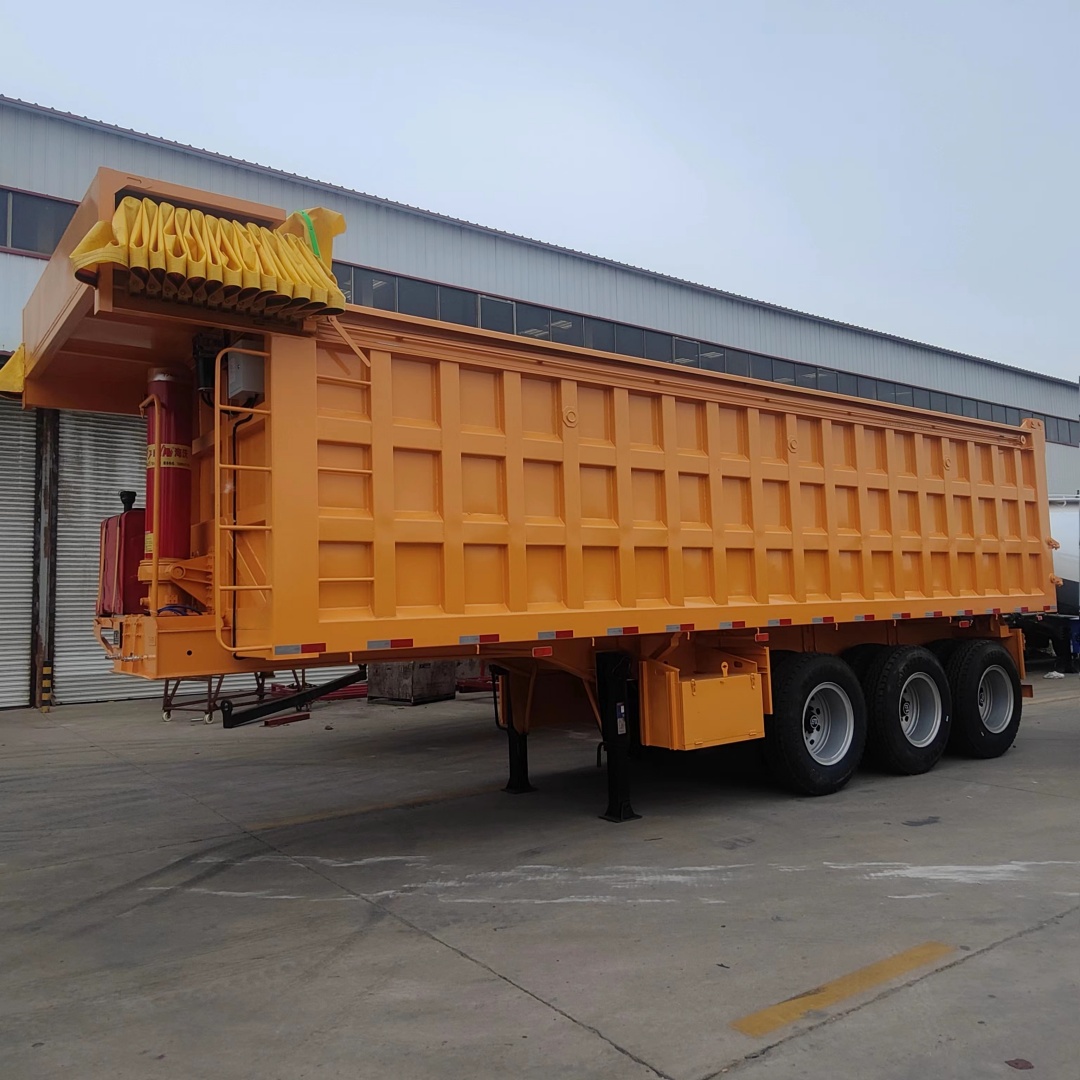

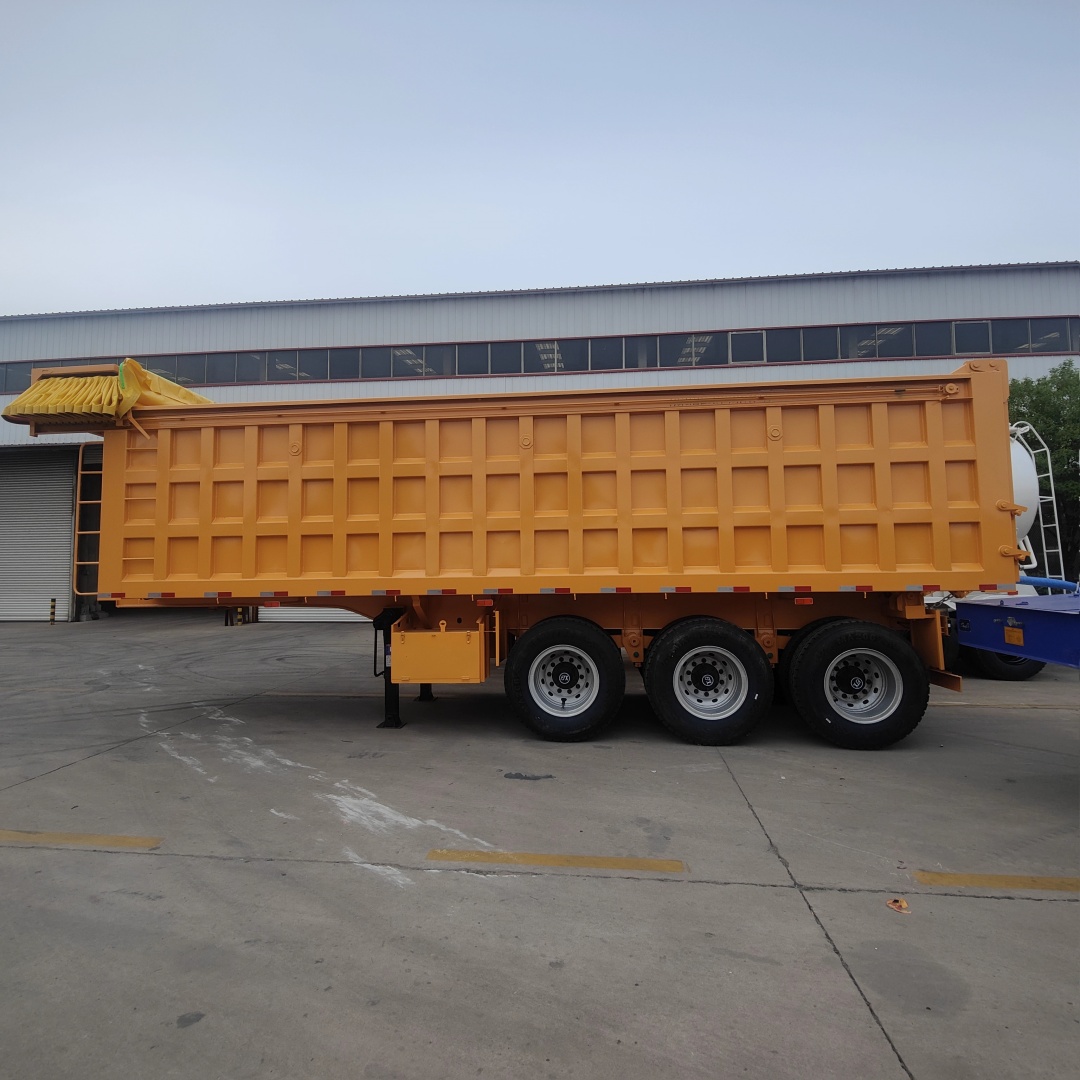

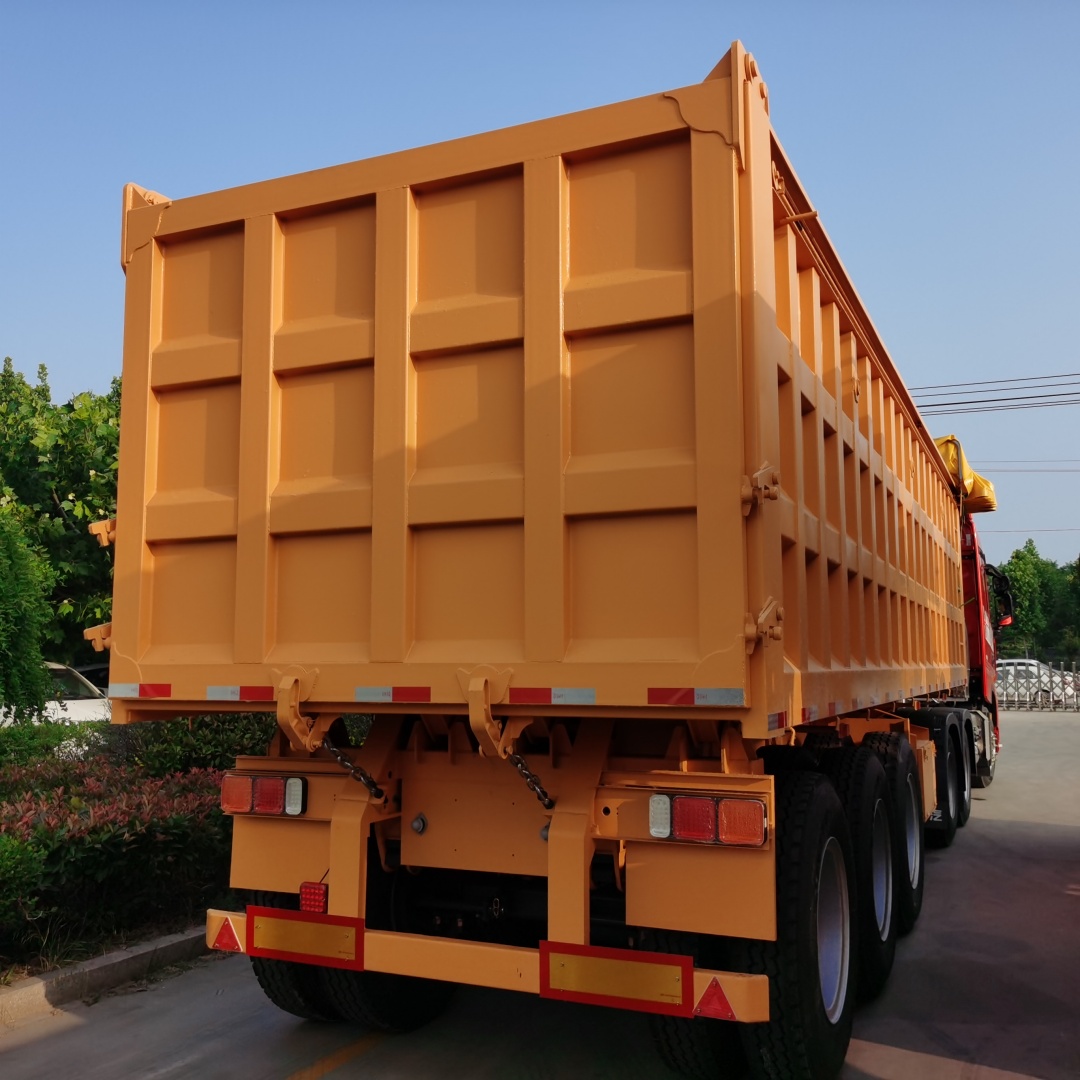

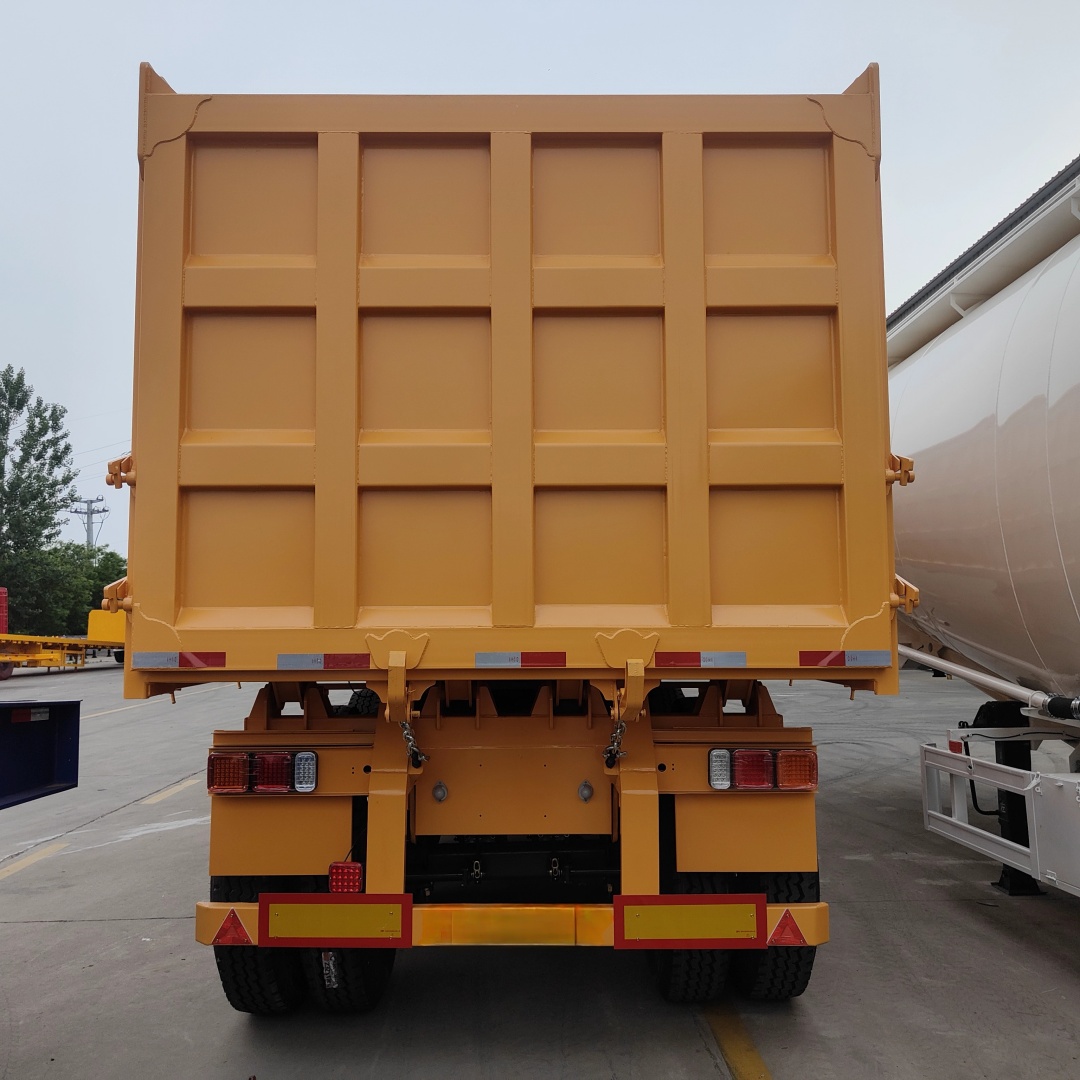

U-type rear dump semi-trailer
Products Detail
| Parameter type | parameter | ||
| Vehicle size (Length, Width, Height) | 9/9.5/10m*2.5/2.55/m*1.8-4m(Or customized according to needs） | ||
| Container parameters | Container size
(Length,Width,Height) |
8.5/9/10.5m*2.5/2.55m*1.8-4m(Or customized according to needs) | |
| Container material | T700，T750 High strength steel plate | ||
| Vehicle weight | 7.8T-11.8T(Depending on the vehicle model) | ||
| Design load capacity | 35T-100T(Depending on the vehicle model) | ||
| Rated quality | 25T-40T(Depending on the vehicle model) | ||
| Number of axes | 3-4-5 axis | ||
| wheelbase | 4200,5860，+1310+1310（Or customized according to needs） | ||
| Tire specifications | Number of tires | 12-20（Or customized according to needs） | |
| Tire model | 11.00R20，12.00R22.5 etc，（Or customized according to needs） | ||
| Power take-off system | Power take-off device（According to the ratio of the tractor truck gearbox） | ||
| braking system | Front and rear drum dual circuit hydraulic brake and pneumatic brake system, independent parking brake | ||

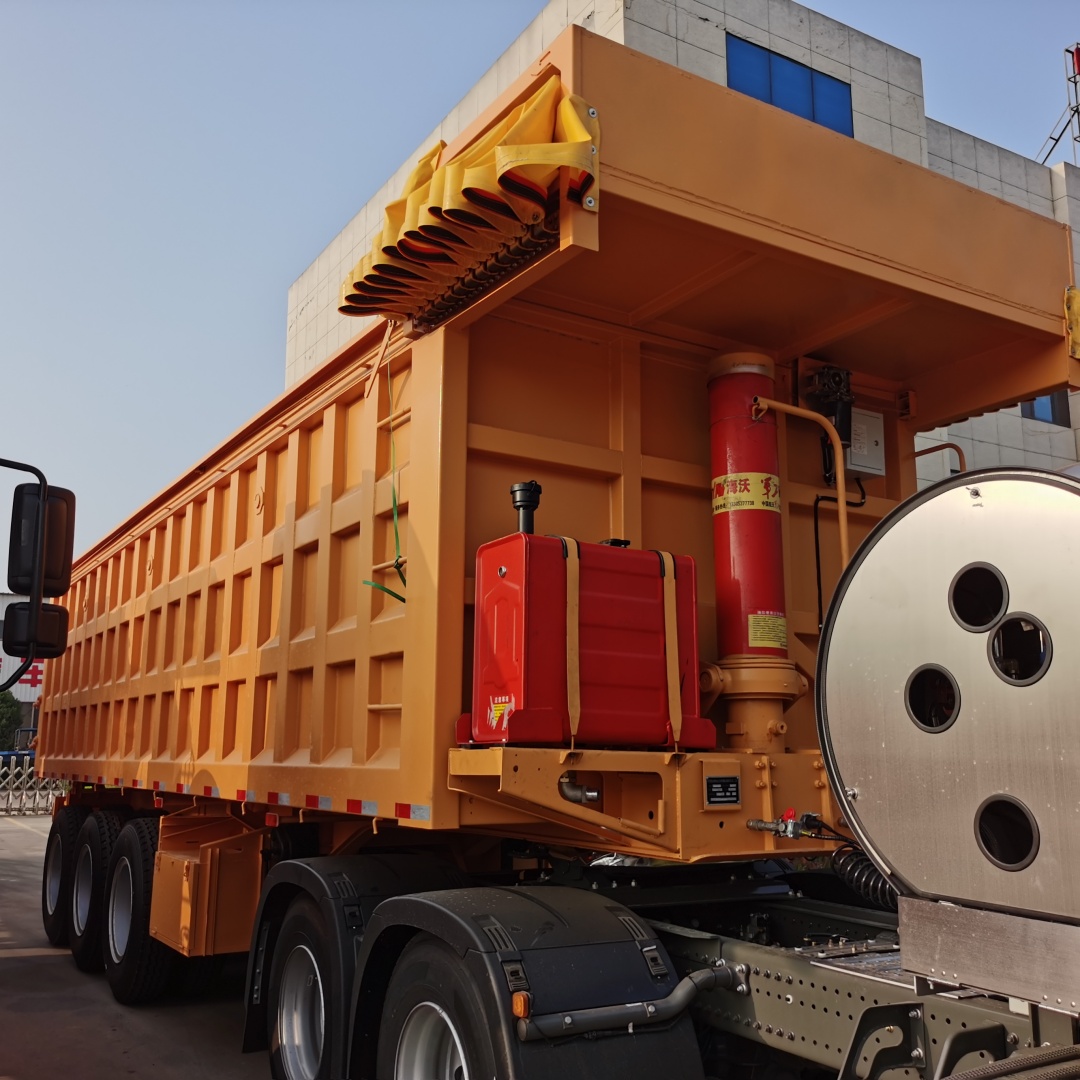

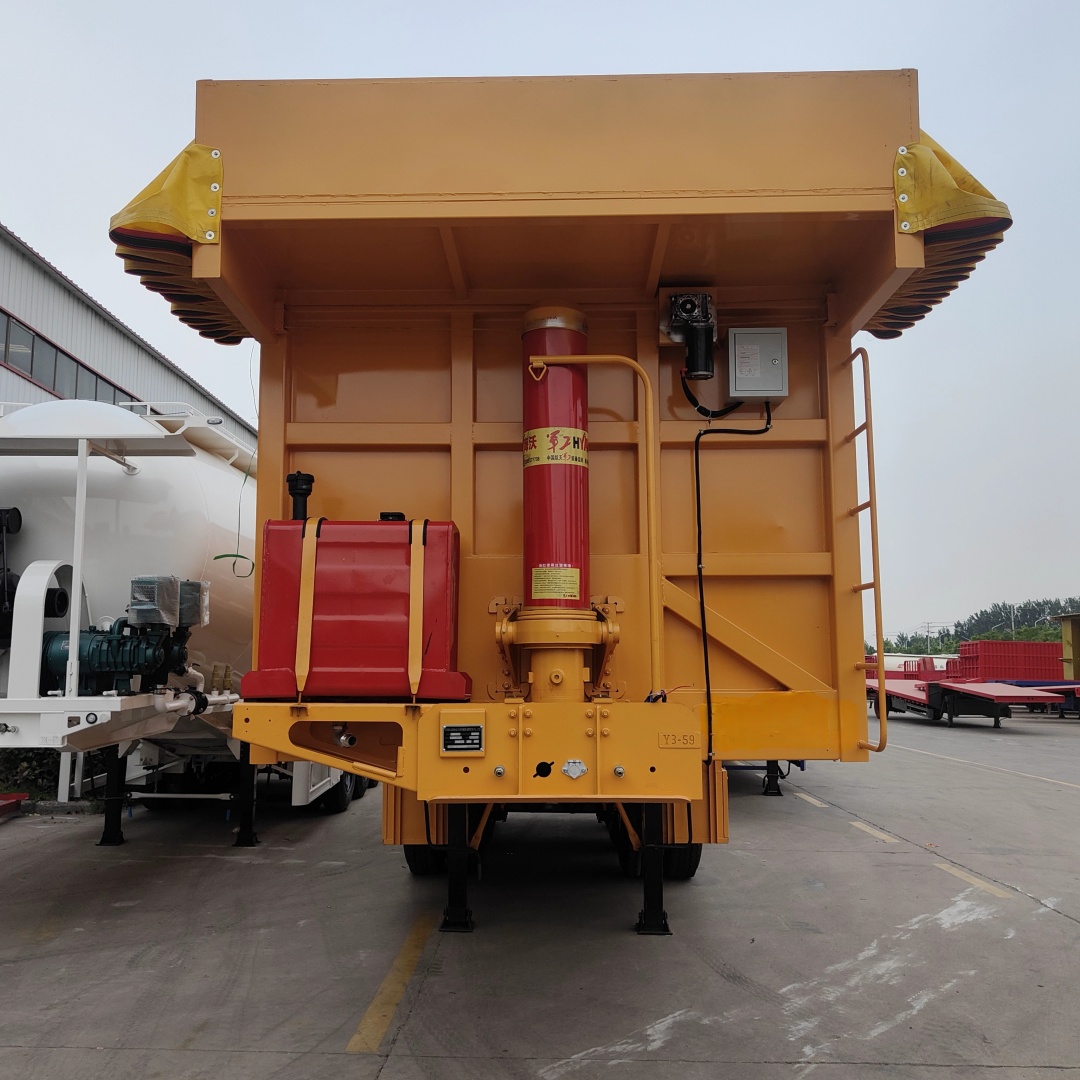

| Lifting system | Lifting method | Haiwo hydraulic cylinder lifting | |
| Number of lifting
cylinders |
1 rear+2 auxiliary (optional) | ||
|
Suspension system type |
Mechanics | Front and rear longitudinal steel plate springs, Fuhua | |
| Air suspension | Cylinder type pneumatic shock absorber, Fuhua (lightweight optional) | ||
| Material of the main beam | T700，Q355E，690D. BS980.High strength steel | ||
| Main beam and longitudinal beam parameters | Vertical board
thickness |
4/6/8/10mm | |
| Height | 400-500mm | ||
| Thickness of upper wing plate | 6/8/10/12/14mm | ||
| Thickness of lower wing plate | 8/10/12/14/16mm | ||
| Leg type | 28T,JOST,Single action or linkage | ||
| ABS,EBS,system | KORMEE，WABCO | ||
| spray | Rust prevention+polyurethane paint, powder coating electrophoresis, customized according to needs | ||
