Products Detail
| Parameter type | Parameter | |||

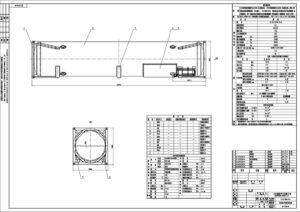

| Product drawings |  |
|||
|
Tank container |
model | GJ-0.8-2265-45.5 | ||
| Container type | 1AA | |||
| United Nations Number | UN1972 | |||
| Guidelines for Tank Cabinets | T75 | |||
| Size and box type code | 42K7 | |||
| Box weight kg | 13035 | |||
| Maximum loading weight kg | 17445 | |||
| Maximum total mass kg | 30480 | |||
| Allow stacking quality kg | 192000 | |||
| Dimensions (length x width x height)mm | 12192X2438X2591 | |||
| Main hazard type | 2.1 | |||
| Design service life | 20 | |||
| type of shipping | Highway, waterway, or intermodal transportation of these modes of transportation | |||
|
Tank body |
Parameter type | Content container | Shell | |
| working pressure MPa | ≤0.8 | -0.1 | ||
| Design pressure MPa | 0.8 | -0.1 | ||
| working temperature ℃ | -162 | -40~50 | ||
| Design temperature ℃ | -196 | 60 | ||
|
Main material |
Head material/standard | S30408(Rp1.0)/GB/T24511-2009 | 16MnDR/GB/T3531-2014 | |
| Cylinder material/standard | S30408(Rp1.0)/GB/T24511-2009 | Q345R/GB/T 713-2014 | ||
| Head calculation thickness mm | 6.69 | 5.95 | ||
| Calculate the thickness of the cylinder mm | 6.7 | 2.66 | ||
| Filling Medium | LNG | / | ||
| Medium characteristics | inflammable | / | ||
| volume | 45.5 | 7.89 | ||
| proof pressure MPa | 1.17（Before the set）／1.04（After the set） | / | ||
| Leakage test | 0.8MPa
Air tightness test |
Helium mass spectrometry leak detection | ||
| Corrosion allowance | 0 | 0 | ||
| Welding joint coefficient | 1 | 0.85 | ||
| Vacuum insulation type | High vacuum multi-layer insulation | |||
| Vacuum interlayer leakage rate Pa*m³/S | 5x | |||
| Vacuum interlayer leakage ratePa*m³/S | 1x | |||
| Sealing vacuum degree Pa | ||||
| Static evaporation rate %/d | 0.247 | |||
| Expected service life of vacuum years | 5 | |||
| other | Containers shall undergo various form experiments in accordance with GR/T16563-1996 and TR/T4784-2007 | |||
